Synology DiskStation DS412+ RAM Replacement

Geschrieben von: gieljnssns

Kommentare: 26

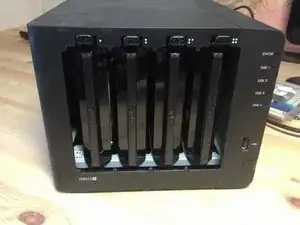

Synology DiskStation DS412+ RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

15 - 30 Minuten

Einleitung

Use this guide to replace the RAM.

The processor in the DS412+ supports DDR3 800/1066MHz RAM modules

Werkzeuge

Ersatzteile

DDR 3 204-Pin SODIMM PC3-8500

Schritt 3

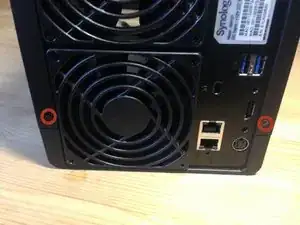

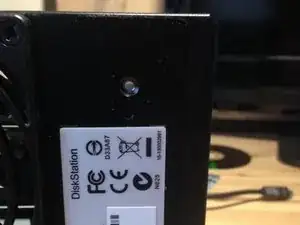

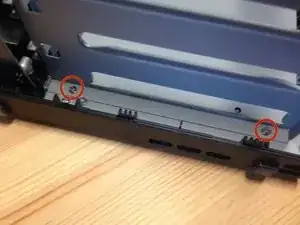

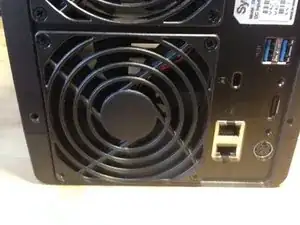

Remove the two screws in the back of the NAS, on the top and bottom.

Schritt 4

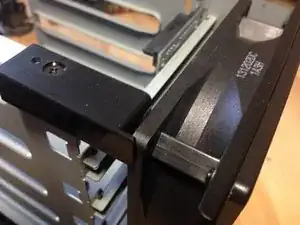

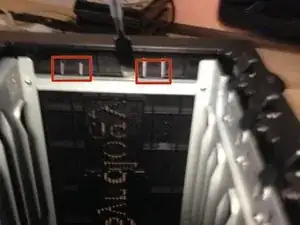

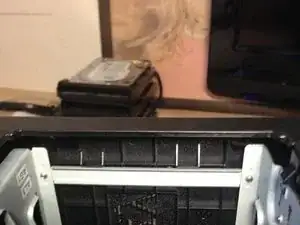

Locate those 2 tabs on the left side inside the device.
Lift them up off the metal brace
You may have to bend the metal support bar to remove the case. Bend it back if you do.

This step could really use a better illustration of the removal technique. The plastic here is extremely stiff and it can be hard to bend it enough to move the tabs.

This is the best technique I found, that will avoid damaging the plastic facing of the case. I am using the iFixit photo as a guide. Take a flathead screwdriver and place it down within the DS412, head facing up. Stick the head in between the metal bar and the plastic casing, and at the midpoint between the two tabs. Apply gentle pressure.

Chris - 17/09/16

I played around with a flathead screwdriver at first but it scratched the metal and I was worried it might damage the plastic casing.

So I found the least destructive way to remove the plastic casing from the metal cage is, by pushing with all four fingers up against the black plastic inside the housing (so behind the metal bar) while your thumb holds on against the outside of the housing and simultaneously pushes the whole housing to shove the two black plastic tabs over the metal bar.

FS-dollop - 30/12/19

Please note, the tabs are just to block the outer case from sliding back in the next step — there’s no big trick or force required here, just flex the side of the case enough to get the tabs to slide past the metal bar.

Rob Miller - 09/02/20

You probably won’t like my solution to this nerve-wracking stage, but simply use a Stanley knife to slice the top of the tabs at an angle and the case can then be slid back relatively easily over the metal bar. It’s my NAS and the screws on the back will hold the case close perfectly well without needing those tabs locking as rigidly as they did before I attacked them. :-)

It’s a daft easy-assembly, difficult-disassembly case.

Richard Lewis - 17/03/21

Coming back to this comment on reassembly: Actually the tabs click back into place very nicely and hold the case in place, just not quite as firmly as before. But still will require a bit of force to remove the cover again. So perfect!

Richard Lewis - 17/03/21

I used 2 plastic (!) tire lifters from the bicycle tool box. They fit under the hooks perfectly and I could easily move back the housing and made no damage whatsoever.

Chrisitan Kolb -

I found the follow YouTube clip helpful:

https://www.youtube.com/watch?v=eHCf51Ay...

Mark Leung -

Schritt 5

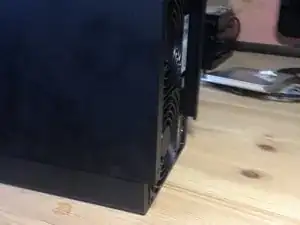

Push the case away towards the back about 1 cm

Schritt 6

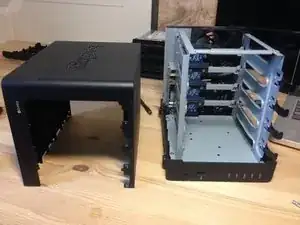

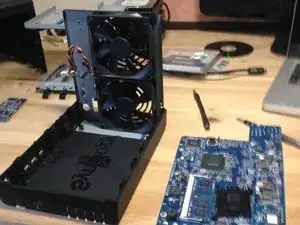

With the NAS on its right side, lift up the enclosure, mind the tabs on the top of the case.

Schritt 7

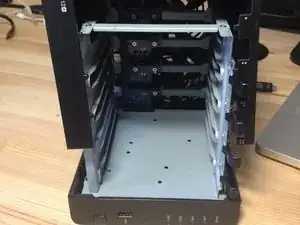

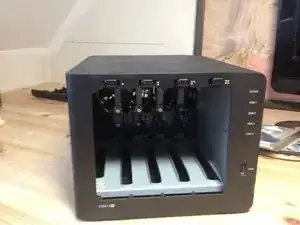

Remove the screw securing the HDD bays enclosure.

Schritt 8

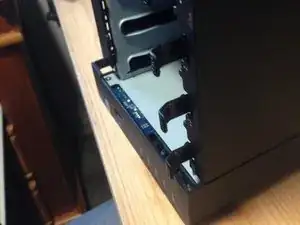

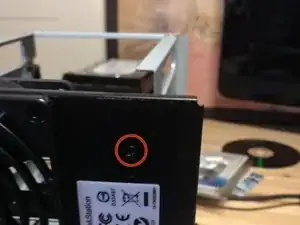

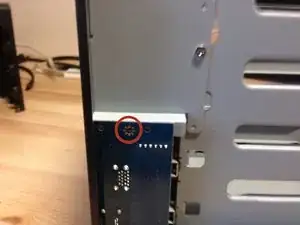

Remove the screw securing the I/O board.

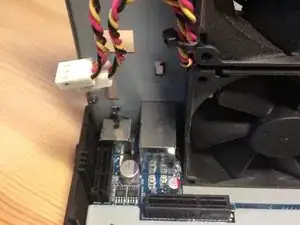

I made the mistake of placing the I/O board behind the frame when I reassembled. I quickly found out my mistake. This photo was helpful.

Mark Leung -

Schritt 9

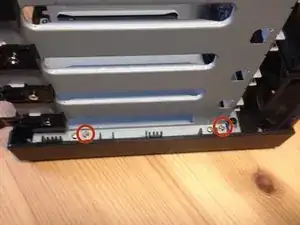

Remove the four screws securing the HDD bays

Schritt 10

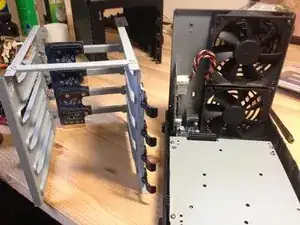

Pull the fan a little bit away

Schritt 11

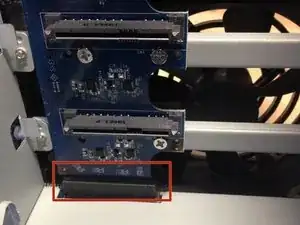

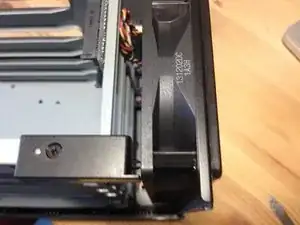

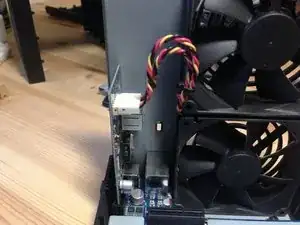

Watch out for this plug
Lift the metal bracket out

Schritt 12

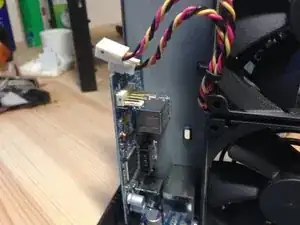

Remove the fan power headers

Schritt 13

Remove the I/O board by lifting it up

Schritt 14

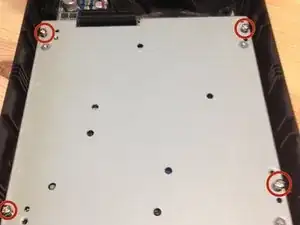

Remove those 4 screws

Schritt 15

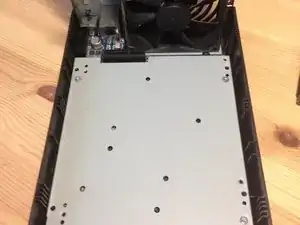

Starting from the front of the unit, remove the motherboard from the unit.

Schritt 16

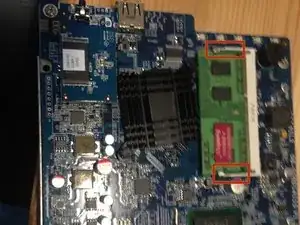

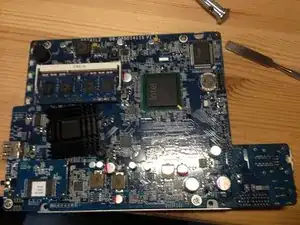

Pull these tabs and remove the ram

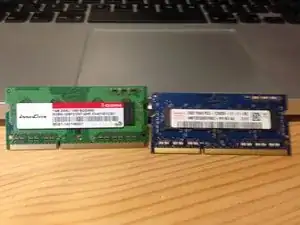

Old and new Ram
The old RAM's part number is: M3SN-1GSFCCM7-GA14
To reassemble your device, follow these instructions in reverse order.

Abschluss

To reassemble your device, follow these instructions in reverse order.
