System76 Gazelle Professional 9 mSATA SSD Replacement

Geschrieben von: James Dearing
  • Kommentare: 0
System76 Gazelle Professional 9 mSATA SSD Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

  1. QYKsWHUiRB4jtZxE

    • Disconnect the battery and power cord from the computer.

  2. HE1rukjq4PN2WtEl

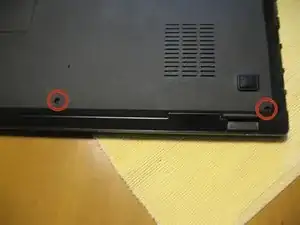

    • Remove the two 5mm screws near the front of the computer

  3. 6X2loxymoWScFAid

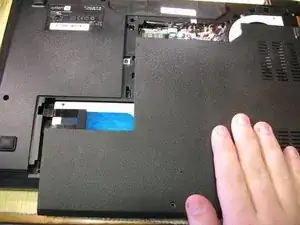

    • Slide the panel towards the front of the computer; it will come off easily.

  4. 6QJDJCgDY4QEA6Qj
    6QJDJCgDY4QEA6Qj
    kLqrSRMv2EmPJlu1

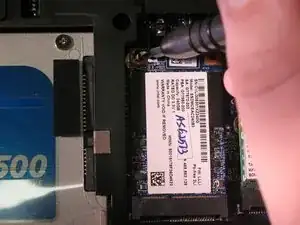

    • If you have not already, be sure to ground yourself before touching any internal parts.

    • Remove the single 3mm screw holding down the SSD.

  5. WuytLEiKEWauUcUv
    WuytLEiKEWauUcUv
    2P6QwAnChHKfIDCr

    • The drive will stick up slightly; gently remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
