Einleitung

The removal process for the System76 Serval WS is easy, and can be done in under 2 minutes. No tools are needed.

  1. ULSQBFuR2NCAKPPr

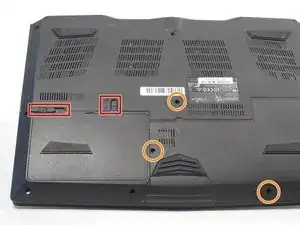

    • Turn laptop over so the bottom faces up.

    • Using your thumbs, open the tabs on the back panel.

    • Using a PH #00 screwdriver, remove the 3 6mm screws on the back panel.

  2. weoT2iVGGYEiePb2
    weoT2iVGGYEiePb2
    FW2gIMCCAYRSfOV5

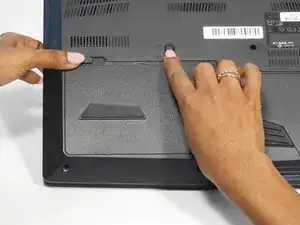

    • Unlock the button on the right by gently sliding it upward, away from you.

    • With some force, slide the left unlock button to the right, which will eject the battery from its compartment.

  3. KvdxJbeNf5MjUKEK

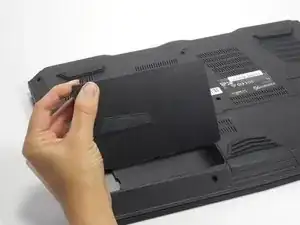

    • Lift ejected battery out of compartment.

Abschluss

To reassemble your device, follow these instructions in reverse order.
