TCL Stylus Battery Replacement

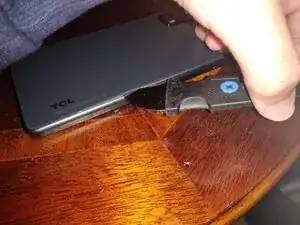

Insert a jimmy tool into the casing to create a gap.

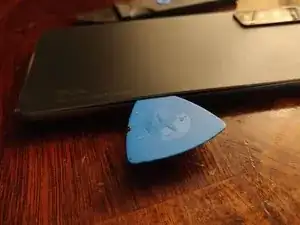

Then, put a plastic pick in the gap and remove the jimmy tool.

Finally, lift up to remove the panel.

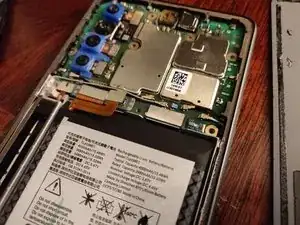

Remove the 10 Phillips screws holding the plastic shielding from the motherboard.

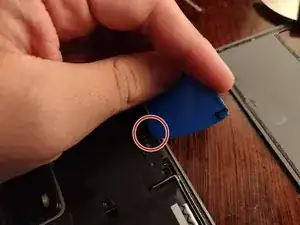

Then, grab a pick and put in in the slot show on picture 2.

You should then be able to lift the rest of it off.

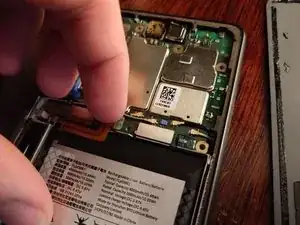

With your fingernail, lift up the battery connector.

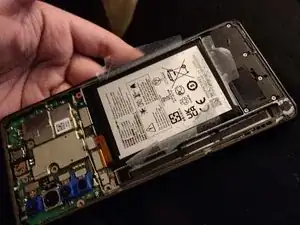

Unpeel the tape holding the battery.

Pull on the sticker located on the middle of the left side of the battery to remove it.

NOTE: The pull tab may have resistance.
