TDK Life on Record A33 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

Replacing the battery is a fairly straightforward and easy process, which may need to be done if the device isn't charging or isn't turning on. A replacement battery, which can be obtained from the TDK website, is needed, along with a Torx screwdriver. Be gentle when working around the wires, as they are fairly thin and can break easily. Overall, this is an easy fix which almost anyone can do.

  1. mEPgFCiQcCWVYrBn
    mEPgFCiQcCWVYrBn
    SBt3EB23qkY3LrQt

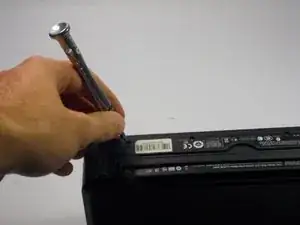

    • Remove all (6) 5mm Torx (Star) screws on the bottom panel of the device using the T4 screwdriver.

  2. IWMKYNVlbRNGkYjD

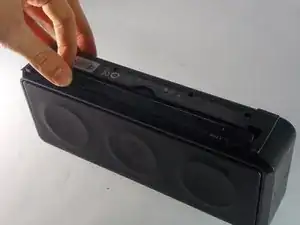

    • Flip up the kickstand to get access to the bottom panel.

  3. mRkenE4IjekDddr6
    mRkenE4IjekDddr6
    DMiu3MPMoUZLbqKt
    Dy2IZPGS41F4er5j

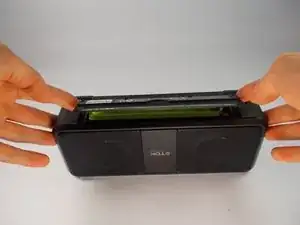

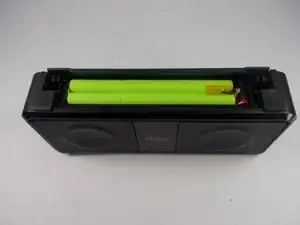

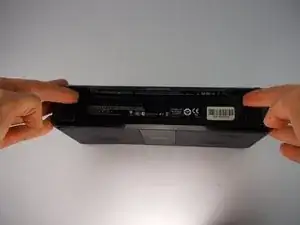

    • Remove the bottom panel from the A33 by inserting both fingers in the gaps on the edge of the panel and lifting up until the bottom panel comes off of the device.

  4. PnfpRavTq3HmtXae
    PnfpRavTq3HmtXae
    vvdkAwFGGOcnVaXo
    kf4XVarL5YSgRCpN

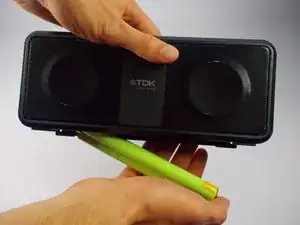

    • Do not rip the wires connecting the A33 to the battery when removing the battery from the device.

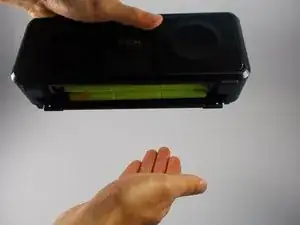

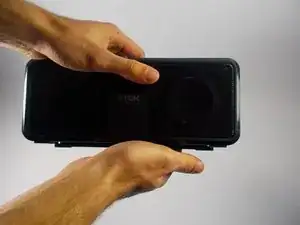

    • Remove the old battery from its housing in the A33 by holding the device up and gently tapping the bottom on your hand until the battery pops out of the A33.

    • When putting the battery back in, make sure it is flat and the wires are pushed into the space along the side. This will make reinstalling the panel much easier

  5. FRQREmueFQSWEsei
    FRQREmueFQSWEsei
    fJKQXmPB4UCUQLrQ

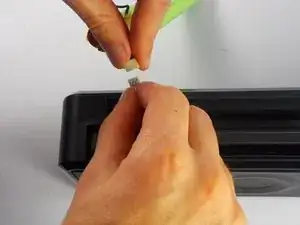

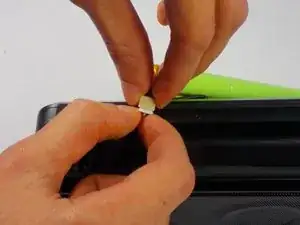

    • Disconnect the old battery from the plug that is attached to the device by grabbing both ends of the plug and pulling them apart.

    My A33 screws were T5 , not T4.

    William Rhodes -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Matthew Festa

Mitglied seit: 16/10/15

808 Reputation

5 Kommentare

This was a GREAT tutorial.

I did find on step 3 that I could not dislodge the cover with my fingernails. I had to use a jeweler's screwdriver to carefully pry it loose. I also found that it was easier to put the new battery in flat end first and then laying it down and putting the wires into the pocket.

Thanks for sharing.

Tom Scott -

Beautifully done, 5 star

Don Rocklin -

I can’t get the screws to come out for anything! Have tried T4 screwdriver plus other sizes, but they won’t budge. Any tips? It’s driving me crazy as I have a new battery ready to go.

rhianne -

Use the T5 Not T4

anonymous 3628 -

Just completed. Great directions though mine required a T5 torx bit, not T4.

Henry -
