TI-84 Plus CE Recovery Techniques.

Geschrieben von: TheLastMillennial
  • Kommentare: 16
TI-84 Plus CE Recovery Techniques.

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Sekunden - 10 Minuten

Einleitung

This guide is compatible with all varients of the TI-84 Plus CE and TI-83 Premium CE.

Most issues will be fixed with at least one of these steps, however they may end up erasing data in your calculator's RAM or ROM (Archive). To prevent data loss, backup your calculator to your computer or Archive any important information.

Please note that each step is its own solution. You do not need to perform every step if your calculator starts working again.

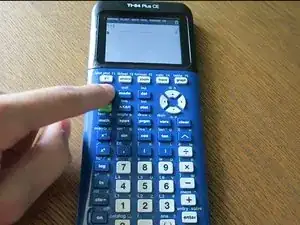

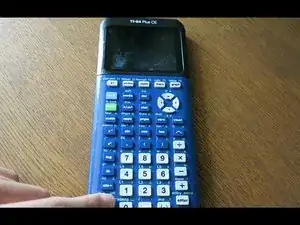

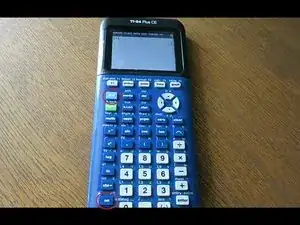

  1. Cty2mEHQXKBtgFyn
    Cty2mEHQXKBtgFyn
    FAuovtKbUHpxAxAt
    vKjc2WXJAJIRURBN

    • Some problems can be fixed simply by powercycling.

    • Press [2nd]

    • Press [on]

    • The calculator should now be turned off.

    • Press [on] to turn it back on.

  2. nwYFGkyFh6Ot36ZS
    nwYFGkyFh6Ot36ZS
    y2klbxrKKDd2jKNH
    SOFcchfRRVJfmYjw

    • This will clear all information stored in the RAM!

    • Information stored in the Archive will be safe.

    • Remove the slide case and turn your calculator on its back.

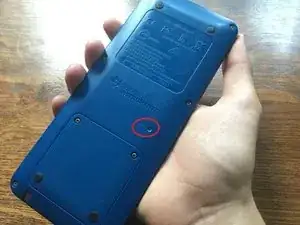

    • Take a pencil or thin object and press and hold the 'reset' button on the back of the calculator for at least 2 seconds, then release.

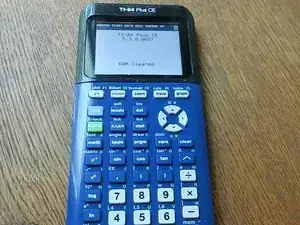

    • After a second or two, your calculator should say "RAM Cleared".

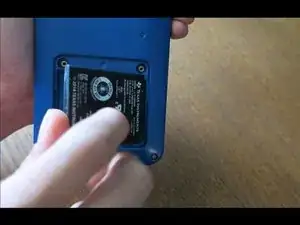

  3. xnNdSBRXTZipSCvC
    xnNdSBRXTZipSCvC
    MPauuFJEDeYbJLYP
    SMOfC5mVWTgOwcOx

    • This will clear all information in the RAM!

    • Information stored in the Archive will be safe.

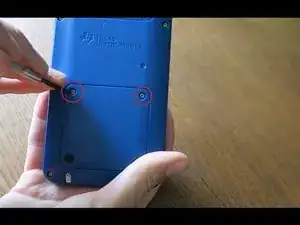

    • Refer to this guide for instructions on how to remove the battery.

    • Reinsert the battery after a few seconds.

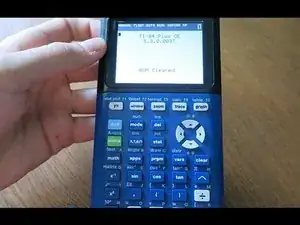

    • Your calculator should automatically turn on and display a "RAM Cleared" screen.

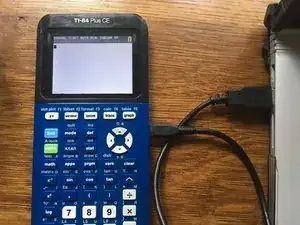

  4. ko1PHZgrD2kyoHSp
    ko1PHZgrD2kyoHSp
    XXSW4TDyyBWoXGvr
    Lr5YQJPjbUBUvsHx

    • This will clear all information stored in the RAM!

    • This could erase information stored in the Archive!

    • Backup your information to your computer or another calculator if you want to save information.

    • Install TI Connect CE. (If you already have it installed, you can skip this step)

    • If you are running either MacOS or Windows, go to TI's website and download TI Connect CE.

    • If you are running Linux, install TiLP.

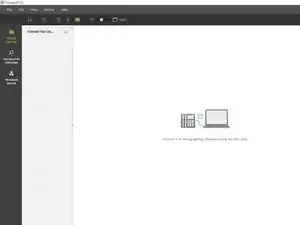

    • Open TI Connect CE.

    • Connect your calculator to your computer via a USB to mini USB adapter.

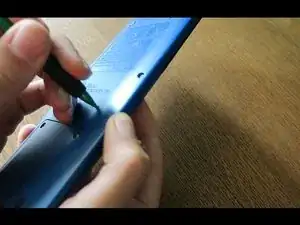

  5. fcRFsBNTaqIIxONI
    fcRFsBNTaqIIxONI
    BlWKOc51gOxT5oQv
    pNOWSEtPOsHOEd6B

    • All warnings from Part 1 still apply.

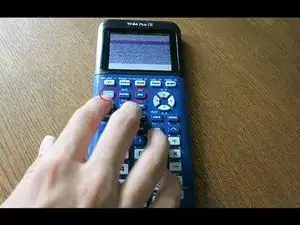

    • Press and hold [2nd] and [del].

    • Turn the calculator over; press and release the 'reset' button.

    • Keep holding down [2nd] and [del]!

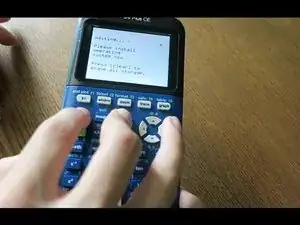

    • If you did it correctly, you will see a 'Install OS now' screen. If you do not see this screen, try again.

    • Once you see this screen, you can release [2nd] and [del].

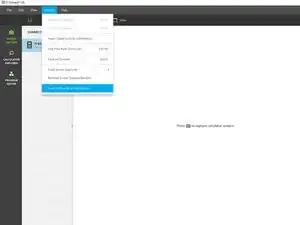

  6. 2dGFgFOCEOeijYR4
    2dGFgFOCEOeijYR4
    XmM61wfmFFktwLKN
    HMTfIvfnILxCHZXq

    • All warnings from Part 1 still apply.

    • WARNING: The latest OS will disable the ability to run most games and some programs! Once you update you cannot downgrade! OS 5.4.0 is the last safe OS to update to. Anything higher will require the arTIfiCE jailbreak to run many programs.

    • If you know what OS your calculator was using, then you can go ahead and search for it on TI-Planet. Otherwise, attempt to install OS 5.4.0 first. If it fails, then you should install the latest OS from TI's website.

    • Download and install OS 5.4.0: TI-84 Plus CE | TI-83 Premium CE.

    • If OS 5.4.0 is not supported, then download the latest OS: TI-84 Plus CE | TI-83 Premium CE

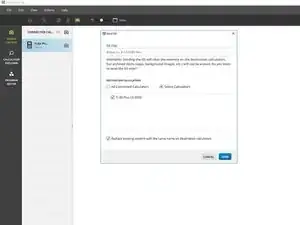

    • In TI Connect CE, click on 'Actions', then 'send OS/Bundle to calculators...'

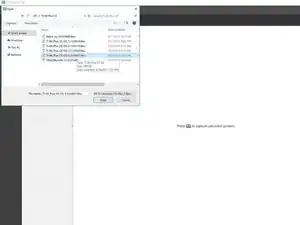

    • Navigate to where you saved the OS and select it. It will take a second for TI-Connect CE to load. Once the popup appears, click 'send'.

    • This will take a few minutes to install.

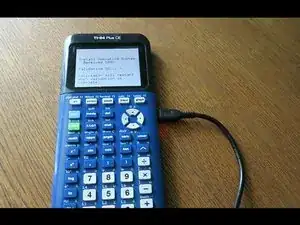

  7. ZKOBZuodEdTv55GY
    ZKOBZuodEdTv55GY
    KIPaIuUYydUrAwHh
    emVxj3VtT1ZfMjNe

    • DO NOT UNPLUG THE CABLE DURING TRANSFER! You risk damaging your calculator!

    • All warnings from Part 1 still apply.

    • Wait for the OS to send and verify.

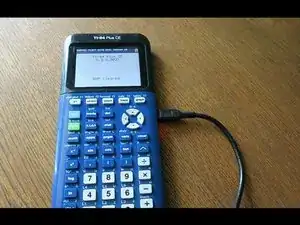

    • Once finished, you should see a 'RAM cleared' screen. Your calculator is now finished installing the OS.

Abschluss

Your calculator should now be functioning.

If it is still having issues, contact Texas Instruments support:

Tinte & Feder

TheLastMillennial

Mitglied seit: 18/07/18

2589 Reputation

16 Kommentare

My calculator has not turned on for the past week. I have tried multiple USB cables and power sources, a (charged, working) battery, the On+Ac+Reset trick, and all of the techniques mentioned in this guide. The calculator still displays nothing on the screen, and windows, Ubuntu Linux, and MacOS all refuse to recognize the calculator. Drivers can’t be installed, and I even attempted a jerry-rigged USB connection using a few alligator clips (bypassing the usb connector in the calculator). Any advice? I’ll take any at this point.

Owen Sayre -

@the_pimaster Ok, just checking, you do have a TI-84 Plus CE? There are similar calculators out there that have different key combos. Also, what do you mean by On+Ac+Reset? The correct combination is [2nd]+[del]+Reset. I’m surprised the computer doesn’t even recognize the calculator is connected, does the LED by the USB port turn on when you connect it to power? If so, what color?

What were you doing when the calculator was last working? Did you accidentally spill something on it, drop it, or crush it?

TheLastMillennial -

@thelastmill Thanks for the quick response! Yes, it is definitely a TI-84 Plus CE. I just tried the 2nd+Del+Reset combo you mentioned, but still no response. Something interesting— The calculator is not showing up in Windows’ device manager nor in driver installation menus (“Unknown USB Device”) but unplugging/re-plugging or hitting the reset button triggers the “new device” sound in Windows 10. When I first plugged in the Calc, the Light by the charging port lit up red. After 2-ish hours charging, it is now green— I am aware that the battery/charging circuit is seperate from the calculator itself, which may be the source of this issue. The calculator was working last week during a math test, during which the screen turned black. The battery was charged to ~80% at the time, and the device was sitting on a desk— no physical damage occurred, and the calculator is only around a year old.

Owen Sayre -

@the_pimaster Sorry it took a lot longer for this one. I’ve been asking some of my friends about this and unfortunately I think your best bet is to contact TI. I’ve never seen a calculator just… die like that before and it’s quite confused me; if I find a solution I’ll be sure to notify you. For now though you can email them at: ti-cares@ti.com or call 1-800-TI-CARES (toll free). I apologize I wasn’t able to help you with this, if TI somehow gets it working again, please inform me how they did it!

TheLastMillennial -

So I have an issue, my calculator has had its battery light charger indicator on forever until it dies, that was 4 months ago. Since then I have been constantly having to charge it when I use it since the battery lasts for 2.5 hours off a single charge, but unfortunately, the darn thing would not turn on last night. I have tried every cable, nothing works.

Now for my what I think happened was that I used the wrong wall plug which destroyed the capacitor. Any advice?

Alexander Mai -

@Infine Axel, I think this is the exact question topic you’re looking for: Why my charging light is always on? It kills the battery..

TheLastMillennial -

just try a new battery lol

Shua Manory -

TheLastMillennial, my daughter’s calculator has just done the same thing as yours. Not responding, black screen, computer is not recognizing it and when plugged in to the outlet to charge it continues to show a red light. Not responding to reset or anything, screen is black. Happened overnight, no damage. I also bought a new batter, but seem it’s not that. Did you ever get your calculator working and if so what did you do? Thanks

cnc -

@tfc_cnc Hi, first off I really appreciate all the information you provided, it makes this a lot easier to diagnose! Unfortunately if reinstalling the OS (step 4) does not work, then there’s nothing more you can try on the software side. However, If the battery indicator never turns green even after charging overnight then there may be a defect with the battery itself. Try replacing the battery; if that doesn’t work then I think you’ll need to contact TI Cares. I have no idea why some calculator just die for no reason. Please let me know if you get it working again!

TheLastMillennial -

I dropped my calculator and the screen froze and stopped working; everything else seems to be working it detects batter the light turns off and off when I plug into the charger; I tried everything but the screen won’t turn on. any suggestions?

sami dakka -

That’s interesting, does your computer recognize it when you plug the calculator in?

Just so you know, the charging circuit is separate from the rest of the calculator so it can still work even if the calculator doesn’t.

TheLastMillennial -

My problem is that the ON keypad button does nothing, but everything else works fine. I can turn on the calculator in 3 ways: 1. Remove and reinsert the battery. 2. Press the tiny reset button in the back. 3. Plug in the charging cable while connected to a charger. When it’s on, I can’t turn it off. Pressing 2nd - ON does nothing. If I leave it alone, it will power off, but pressing the ON button does nothing and I have to use one of the 3 methods above to turn it back on. I tried everything in this guide, but the problem is exactly the same which leads me to believe it’s a hardware problem. I also installed a brand new battery. Any ideas about how to fix this would be greatly appreciated.

Bob Cassidy -

I’ve replied to your question here: TI-84 Plus CE - ON Button Not Working To Turn On or Off

TheLastMillennial -

My TI-83 calculator is just displaying 0000000 and nothing else. All tricks I found on the internet didn't work. I can't turn it off, clear its ram, or do anything. I had restored the calculator the night before after about 15 years of not using it. It doesn't respond to anything, even pressing the 2nd button doesn't change the cursor to the up arrow. I was wondering how I could fix it. Yesterday, the day I restored it, the calculator was working just fine, but today it's not working. please help.

Aleksandr Comazzi -

This morning, I accidentally left my TI-84 Plus CE graphing calculator in my backpack while putting it through the washing machine. I can't do anything because it won't turn on. Is there anything I can do to fix it? Any place I can go? Please help!!

Ngoc Vo -

Do not try to turn it on while wet! Immediately take out the battery. Disassemble the calculator using the teardown guide TI-84 Plus CE Teardown wipe down the circuit board with isopropyl alcohol and let it dry for several hours. With any luck the calculator will turn on.

If it doesn't turn on and it's less than a year old, then you can try to contact TI customer support for a replacement https://education.ti.com/en/customer-sup...

If they won't help you then you're just plain out of luck. You may be able to sell the calculator for parts but you'll still have to buy a new one.

TheLastMillennial -
