TI-84 Plus Silver Edition Individual Key Replacement

Geschrieben von: Kale McKinney
  • Kommentare: 5
TI-84 Plus Silver Edition Individual Key Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

10 - 20 Minuten

Einleitung

If a key is missing from the TI-84 Silver Plus Edition or there are broken keys than this guide can help you fix this problem.

  1. lxpCsTvK2glZy6eV

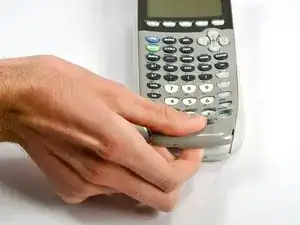

    • Insert your index finger in the open slot below the keys.

    • Be careful to not bend the plate too much because it is very thin and might break.

    • Apply a firm upward force until the bottom two tabs located near the bottom of the plate come off.

  2. WlCCZUAVMxjf3V4D

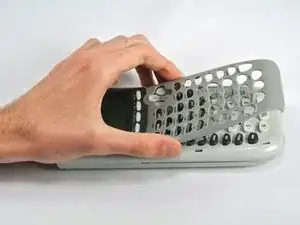

    • Grab the face plate on each side near the middle and apply a gentle upward force on each side until the middle tabs come off.

    • A tab is located in the center of the face plate. If it is still attached, then continue to apply a gentle upward force until the center tab comes off.

    • Lift the face plate upward until the top three tabs come off and the face plate is completely detached.

  3. NnGSuwmIoggXfGcT
    NnGSuwmIoggXfGcT
    ZiXO6MkOQ3rv2Nea
    amvuZQWoyTBqTdLq

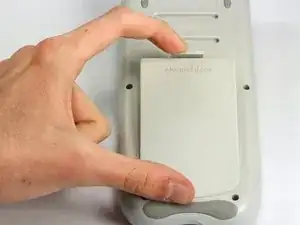

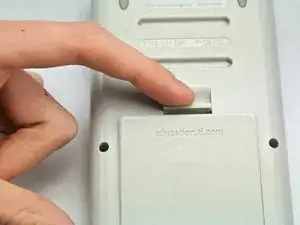

    • Push firmly down on the tab located on the back of the calculator near the center.

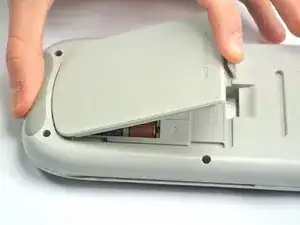

    • Pull the tab up, lifting it off of the calculator and exposing the batteries.

  4. Ralc5HnHVxoP2W1a

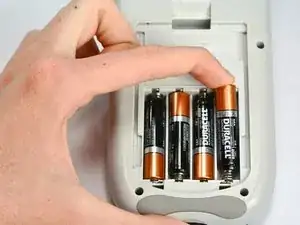

    • Removing the AAAs and the back up battery will clear the calculator's memory. Make sure you have backed up any important data prior to performing this step.

    • Push the positive (+) side of the batteries to remove them

    Removing these batteries and the back up battery will clear the calculators memory.

    Aaron Rueppel -

  5. C1uSSVpUE1XRBhiq

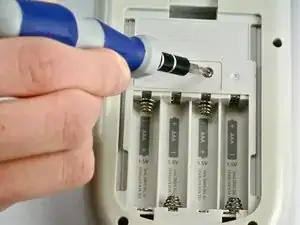

    • Using the Phillips #00 Screwdriver, unscrew the 15 mm screw holding the backup battery cover, located above the main battery area.

  6. AdyJv1qi4PONJhvJ

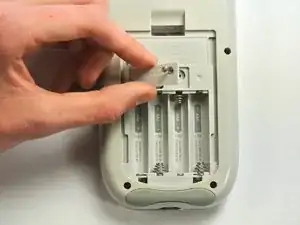

    • Grab the plate and lift gently upward, to remove the backup battery cover.

  7. bEAxJ1Dbl6VSRHNg
    bEAxJ1Dbl6VSRHNg
    2YKusLBI1tqJW4tT

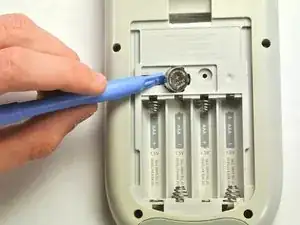

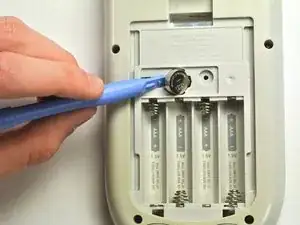

    • Wedge the small plastic opening tool under the backup battery in the gap to the left of the backup battery.

    • The backup battery is an SR44SW coin cell battery. You can also replace it with a size 357/303 or LR44 battery.

    • Push gently downward until the backup battery pops out.

  8. ITBa1jPpLgXxZ2CU
    ITBa1jPpLgXxZ2CU
    MrtMCwZmksXCrbJu

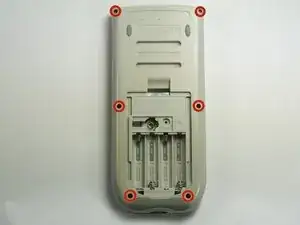

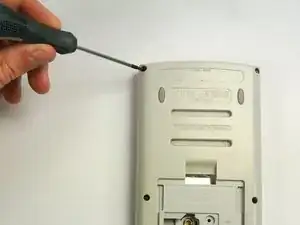

    • Unscrew the six 8.5 mm screws located on the perimeter of the back cover using the Precision T6 Torx Screwdriver.

  9. QDqLxQctLv6KRsYK
    QDqLxQctLv6KRsYK
    x3T5wXlsuE1rvmGA
    1fBMSny1TyC4TAjj

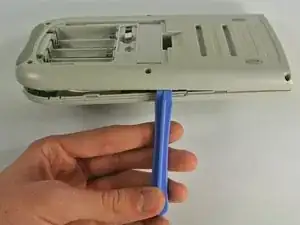

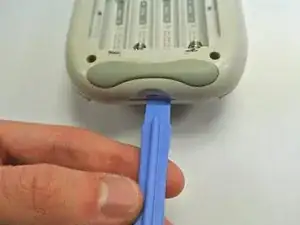

    • Wedge the large plastic opening tool in the gap at the bottom between the top and bottom covers.

    • Apply a gentle downward force to separate the top cover from the bottom cover.

    • Wedge the large plastic opening tool in the gaps along each side to unhook the side clips.

    • There are clips located at the bottom of the calculator, on the sides of the calculator (both near the bottom and near the top), and at the top of the calculator.

    • Pull the bottom cover apart from the top cover.

  10. PTZpoT5rybCNonek
    PTZpoT5rybCNonek
    4LMJuX3kLIBqtTqP

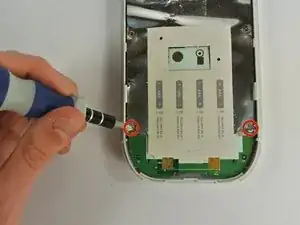

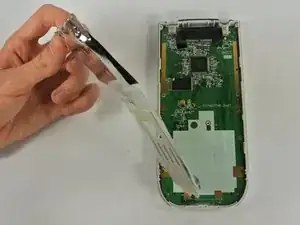

    • Unscrew the two 5 mm screws at the bottom of the silver sheet using the Phillips #00 Screwdriver.

    • Pull up on the silver sheet from the top to remove it from the calculator.

  11. e25cVO2avPxiMoXl
    e25cVO2avPxiMoXl
    THkcmFFafiUEbYpO

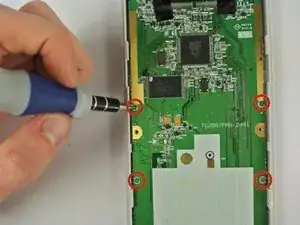

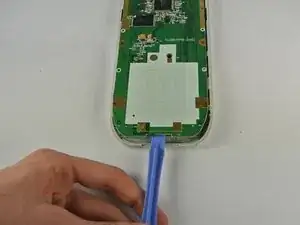

    • Unscrew the four 5 mm screws on the sides of the mother board Phillips #00 Screwdriver.

    • Pry the motherboard out from the bottom of the front casing using the large plastic opening tool.

  12. 3bUXpkSTyOcDZSxK
    3bUXpkSTyOcDZSxK
    6hUlUGltoVCBBwBQ
    UyN244LUKGA4dDpF

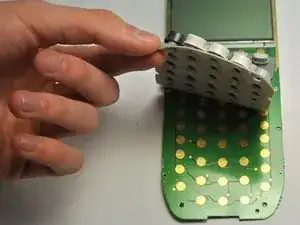

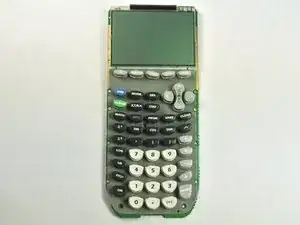

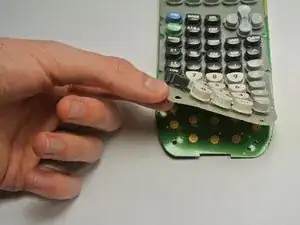

    • Flip over the motherboard to reveal the keys

    • Carefully peal the mat from the motherboard.

    • Do not invert the mat as the keys may fall off.

  13. eFjVTFofuBbiuOKB
    eFjVTFofuBbiuOKB
    2W3u1W2SAcSLMU5D

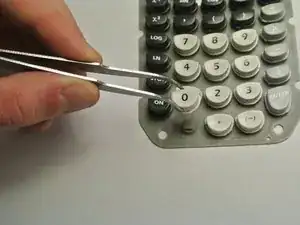

    • Place the tweezers around the key.

    • Lift the tweezers to remove the individual key.

Abschluss

To reassemble your device, follow these instructions in reverse order.
