Einleitung
-
-

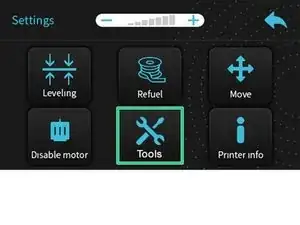

Once your machine has booted up, from the Idle Screen, press Settings.
-

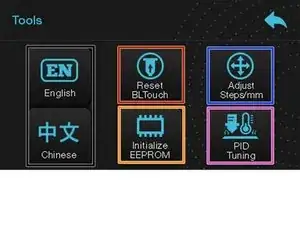

Press Tools
-
Initialize EEPROM will clear all soft data and restore the machine back to the last firmware settings installed. The screen may return to the idle screen.
-
Reset BLTouch is only valid if you have a BL Touch probe installed. This button will clear any current errors with the Probe. No movement or confirmation will occur.
-

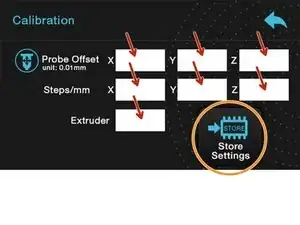

Adjust Steps/mm will bring you to a new menu where you can calibrate each Axis' steps/mm. Pressing this will enter the Calibration screen for Steps/mm.
-
PID Tuning will bring you to a new menu where you can calibrate thermal settings. Pressing this will enter the Calibration screen for PID Tuning.
-
-
-
Calibration
-

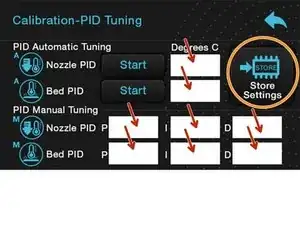

Calibration-PID Tuning>PID Automatic Tuning will initiate an automatic PID calibration. Enter a temperature 10 degrees over your printing temperature and press Start.
-
Calibration-PID Tuning>PID Manual Tuning will display the current saved values and allow manual adjustment.
-
After desired changes are made, press Store Settings
-
-
-

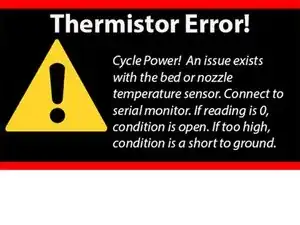

Thermistor Error! This is usually a wiring or component issue.
-

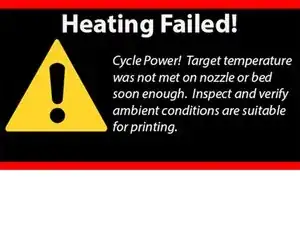

Heating Failed! This is sometimes a wiring or component issue.
-

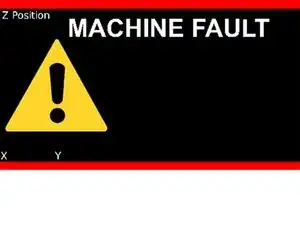

MACHINE FAULT This is sometimes a wiring issue.
-
To reassemble your device, follow these instructions in reverse order.
