TOSHIBA Satellite E45W-C4200X DC Power Jack Replacement

Geschrieben von: masato tsuchida
  • Kommentare: 0
TOSHIBA Satellite E45W-C4200X DC Power Jack Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide will walk you through the necessary steps for replacing the power jack on your Toshiba Satelite E45W-C4200X.

The power jack has been a common problem with the Toshiba Satellite laptops and the replacement is quick and relatively inexpensive.

Before using this guide, make sure to review the troubleshooting page to ensure this replacement is necessary.

Make sure to power off your laptop completely and disconnect from any external power source prior to beginning the process.

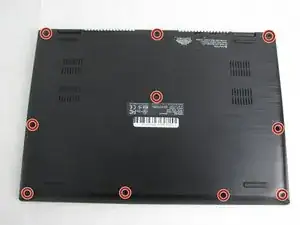

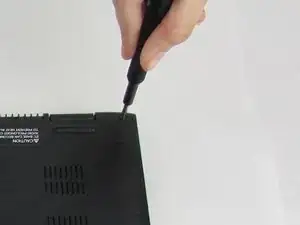

  1. NcKDknmFvfKoMxDI
    NcKDknmFvfKoMxDI
    HbM61FqWRTFNqbsm

    • Remove the ten 1 mm screws that secure the back cover using a Phillip's #1 screwdriver.

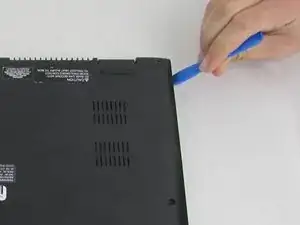

  2. STaRIPp2dQXKYenR
    STaRIPp2dQXKYenR
    3GlFyVTSVBbdnOIH

    • Use plastic opening tool to separate the back cover from the laptop.

    • Go slowly and be careful as the plastic can crack.

    • It is recommended that you start from a corner and run the tool along the edge

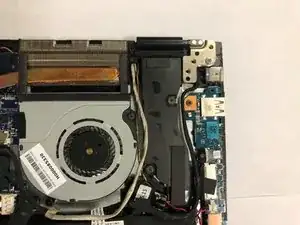

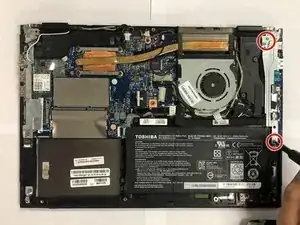

  3. BWCgBLoPYG1ujiNC
    BWCgBLoPYG1ujiNC
    T3ONiWsPSb6EPe1D

    • Using a Phillips # 1 screwdriver, remove the three screws holding the bracket over the ports on the right side.

    • Remove the bracket.

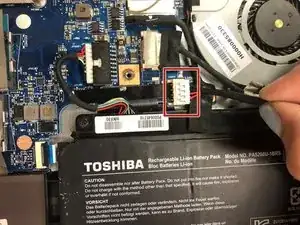

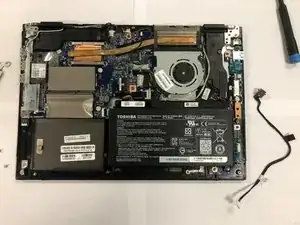

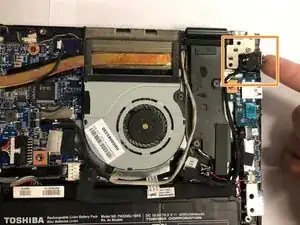

  4. H4cn5rjwDbVxibCK
    H4cn5rjwDbVxibCK
    AZ11AF5LssAYvGHX
    LFtAwnZQUSXoMNlV

    • Unplug the power cable harness from the motherboard.

    • Lift the power jack out of its slot in the top right corner.

    • Remove the cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
