TOSHIBA Satellite E45W-C4200X RAM Replacement

Geschrieben von: Bartow Keller
  • Kommentare: 0
TOSHIBA Satellite E45W-C4200X RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 15 Minuten

Einleitung

This guide will walk you through the necessary steps for replacing the RAM in your Toshiba Satellite E45W-C4200X.

The RAM is a vital piece of hardware that is used to load programs and data.

Before using this guide, make sure to review the troubleshooting page to ensure the RAM will need to be replaced.

Make sure to power off your laptop completely and disconnect from any external power source prior to beginning the process.

  1. 3fhQYy5qeMvskQvH

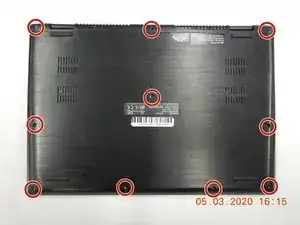

    • Use the Phillips #0 screwdriver to remove the ten 1 mm screws on the back panel.

  2. cEFXZOVQstDHCJt2
    cEFXZOVQstDHCJt2
    THosSUauOXcHsrVt

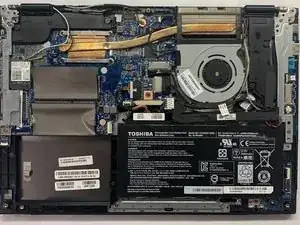

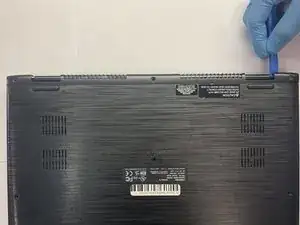

    • Use the plastic opening tool to separate the back panel from the rest of the computer.

    • Be careful and do not to crack the panel.

  3. SYFVMCZxTONEtOLV
    SYFVMCZxTONEtOLV
    X2hYrIAHARVgXLBm

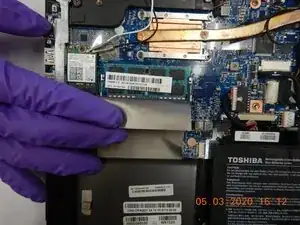

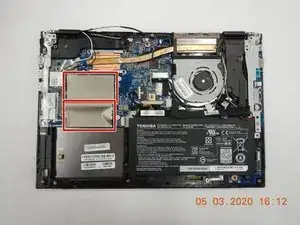

    • Remove the grey film covering the RAM located on the left side of the computer.

  4. 4IRCTqbZuGftIHLm
    4IRCTqbZuGftIHLm
    icmDlrIPLELbg1Ch
    fPw51vYAQTcP5pSJ

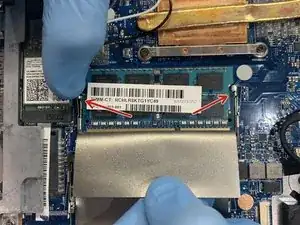

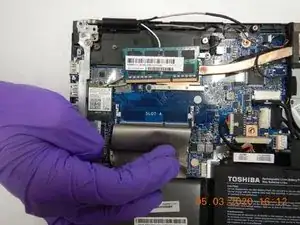

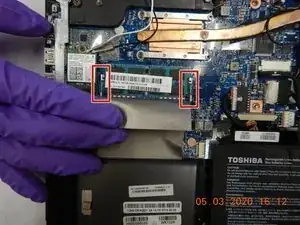

    • Apply pressure on the inside of both brackets until the RAM chips are released.

    • Repeat this step for RAM Slot B.

Abschluss

To reassemble your device, follow these instructions in reverse order.
