TOSHIBA Satellite E45W-C4200X TrackPad Replacement

Geschrieben von: Hudson Bennett
  • Kommentare: 0
TOSHIBA Satellite E45W-C4200X TrackPad Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 20 Minuten

Einleitung

With this guide, you will be able to learn how to replace your Trackpad on your Toshiba Satellite E45W-C4200X.

The trackpad is vital tool for controlling your curser on your computer.

Before using this guide, make sure to review the troubleshooting page to ensure theTrackpad will need to be replaced.

Make sure to power off your laptop completely and disconnect from any external power source prior to beginning the process.

  1. JthS55gNloQLJLbQ
    JthS55gNloQLJLbQ
    QTD54jNYMVDpBgDf

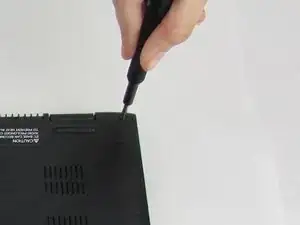

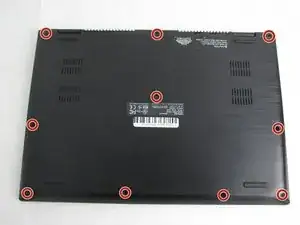

    • Remove the ten 1 mm screws that secure the back cover using a Phillips #1 screwdriver.

  2. fiuWRHJbpePpTUBS
    fiuWRHJbpePpTUBS
    VS1VRoHQFODBAqZr

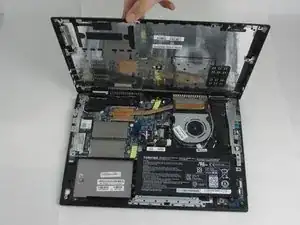

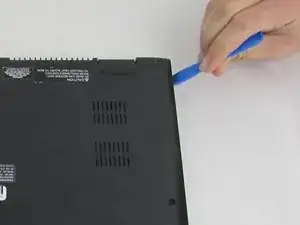

    • Use plastic opening tool to separate the back cover from the laptop.

    • Go slowly and be careful as the plastic can crack.

    • It is recommend that you start from a corner and run the tool along the edge.

    • Lift and remove the casing.

  3. CTHSreIaNjYmW5fD
    CTHSreIaNjYmW5fD
    K3V41ML6gHnmRZb2

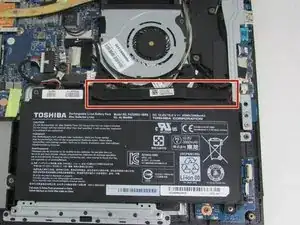

    • Gently lift the flap covering the top side of the battery.

  4. 5rndKdUGCWSLUKTi
    5rndKdUGCWSLUKTi
    ZdZXMlrOVqq6AGKo

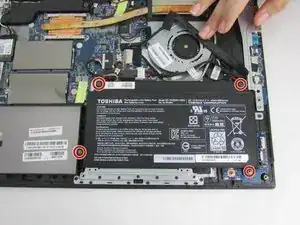

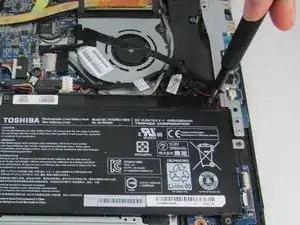

    • Remove the four 0.5 mm screws that hold the battery in using the Phillips #1 screwdriver.

  5. MxZUMVtTQk5YZXox
    MxZUMVtTQk5YZXox
    pcc5ovAflJA4Ljwk

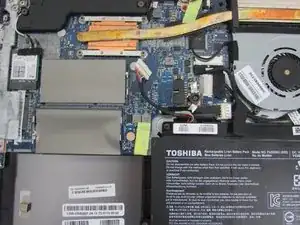

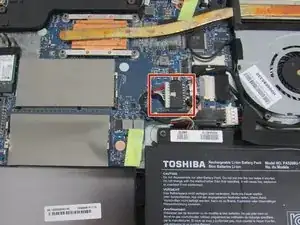

    • Unplug the battery from the motherboard.

  6. IPevWZC2kIQuTAmL

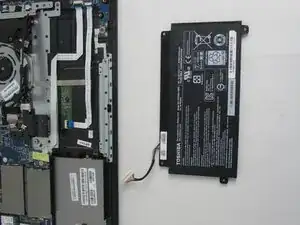

    • Remove the battery from the laptop.

  7. 3ERWTjKIiGtfQNNK

    • Use the heat gun to heat the top of the keyboard cover to loosen the adhesive.

  8. 2jyvXLpSfiEgYPNq
    2jyvXLpSfiEgYPNq
    PTxFLlxZ5NhiBsks

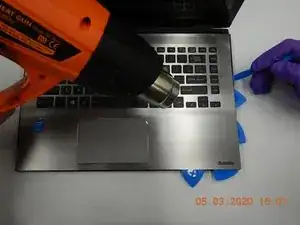

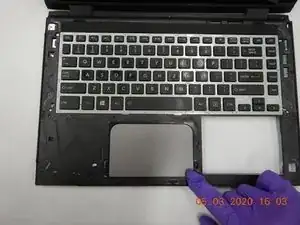

    • Use the spudger to peel up the keyboard cover.

    • Use caution when removing keyboard cover.

  9. ECuMkRhxisQUBixQ
    ECuMkRhxisQUBixQ
    O3DwgOltU6pDqQ4J
    iPmFyx1L6XNwyAU1

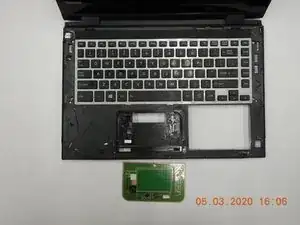

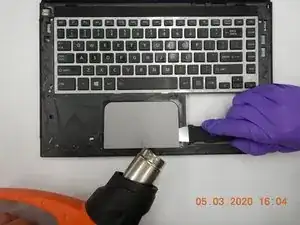

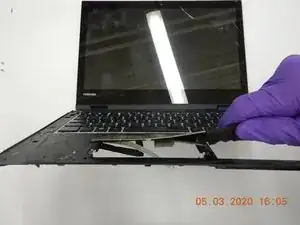

    • Use the heat gun to apply heat to the track pad and use the metal spudger to remove the track pad.

Abschluss

To reassemble your device, follow these instructions in reverse order.
