Removing the TRS-80 Color Computer's motherboard.

  1. 4LXKNGcRQTmgUCHL
    • Flip the computer over.

    • Remove the two 24.1mm Phillips screws near the front of the case.

    • Remove the five 33.0 mm Phillips screws towards the back of the case.

  2. QCep1EOS5XQJTavN
    QCep1EOS5XQJTavN
    kGrNkIQZXAfe3Gk6
    • Carefully flip the computer right side up.

    • Lift off the top half of the case.

  3. R2IcVSmI6c2wXFDj
    R2IcVSmI6c2wXFDj
    qQyDA4h5pETAJFJy
    • Near the motherboard, gently pull the keyboard ribbon cable until it becomes free.

    • Lift the keyboard out of the case.

  4. sDbAUFI4eqFFduXB
    sDbAUFI4eqFFduXB
    FlPBskCAJWtQQSA5
    j2PPZTWobyPJXnWA

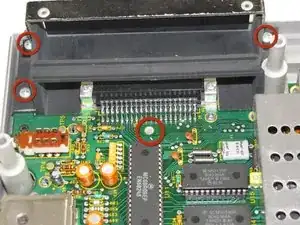

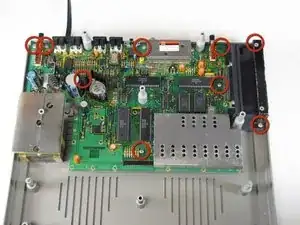

    • Remove the nine 15.24 mm Phillips screws securing the motherboard in place.

    • When removing the spring door, make sure to keep the door closed.

  5. RAIsBMcQwpkpTiMq
    RAIsBMcQwpkpTiMq
    HTCeyjxVvh3egCPS
    h3ELSfTytdg33vIG

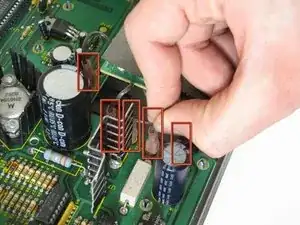

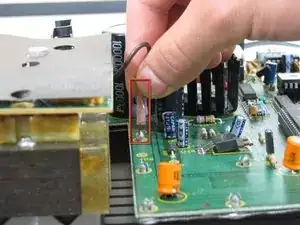

    • Remove the 5 jumper cables from the motherboard.

    • Once the jumper cables lift the motherboard up gently; it should lift out easily.

Abschluss

To reassemble your device, follow these instructions in reverse order.
