Tabby Kidz Battery Replacement

Geschrieben von: Mohamed

Kommentare: 0

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

The battery is a Lithium ion battery, and it runs at 2700mAh with 3.7 Volts. Beware of electrical shock because of this. You will need a soldering gun to complete this job, so be cautious while using this gun as it releases heat at very high temperatures.

Werkzeuge

Ersatzteile

Great Power 2700mAh Lithium ion battery.

Schritt 1

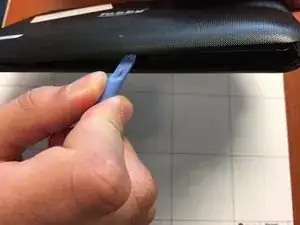

First stick a thin metal wedge into the side of the tablet.
Now, pry the edge open gently in order to release the tabs around the device.

Schritt 2

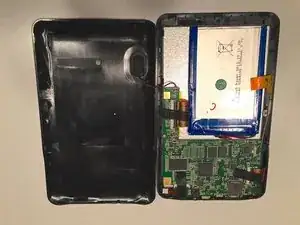

Once you have half of the tabs undone, proceed to use your fingers to pull apart the two halves of the tablet.
Now, set the two pieces next to each other gently.
Make sure to be extremely gentle as you remove the two halves of the tablet. Otherwise, you may tear the speaker wires if you use excessive force.

Schritt 3

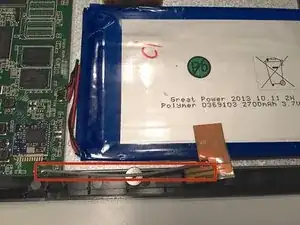

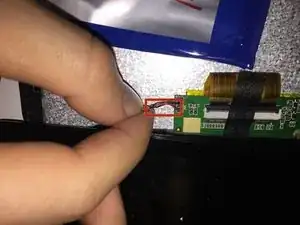

There is a small grey wire that runs from the green logic board to the battery. This is the ground wire, and it needs to be removed from the battery.
The orange end is much like tape so you can just peal it up and set it aside.

Schritt 4

First, put on some safety glasses. Use extreme caution as this next step contains hazards, such as electric shock and burns.

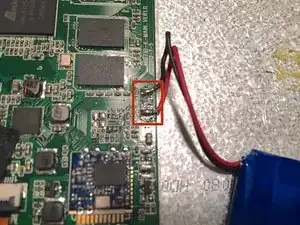

Have your soldering gun heated up. Next, gently touch the silver colored bulbs at the end of the wires. Once the solder has melted, pull the wire off the green motherboard. Then, do the same to the other wire.

Schritt 5

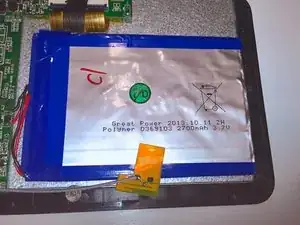

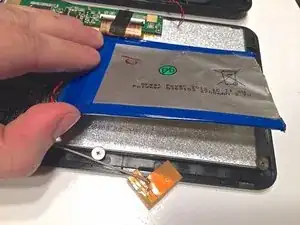

The old battery is attached to the back of the screen by adhesive double sided tape. This means you will have to peal the battery from the surface. A putty knife will be needed to get under the battery.
Do not worry if the battery bends a little.
When reattaching the new battery, use new 2mm double sided tape to stick the battery back on the screen.
