Table Fan Blades Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

If your 6-8 inch Personal Table Fan has been lagging or the blades have broke. Use this guide to replace the blades in your fan.

Before using this guide, make sure your fan works when plugged in. If it does not, the blades are not the issue, the motor is and this guide will not fix the issue.

Before beginning, make sure to unplug your fan.



  1. 2aKLbbwXBuPjQANv
    2aKLbbwXBuPjQANv
    HMSkjsL5MFNC3jlv
    PREog2I5GPXYfMCL

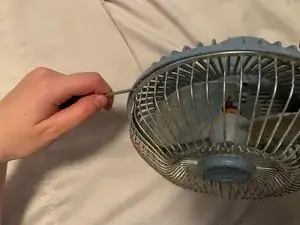

    • Use a prying tool to loosen the front cover.

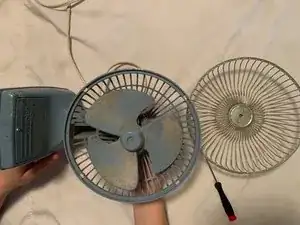

    • After it is pried loose, remove the cover.

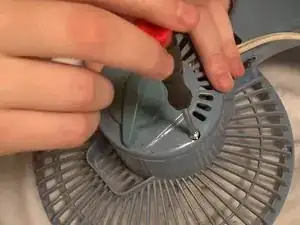

  2. WUDhRd4efWmPOCek

    • Remove two 12.7 mm Phillips #2 screws from the back cover.

    • Take off the back cover.

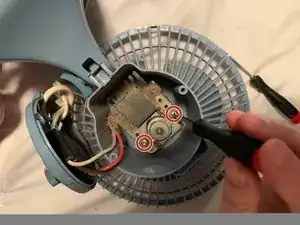

  3. 5bl6OMiMdk1VHBhk

    • Remove two 38.1 mm Phillips #2 screws from the motor.

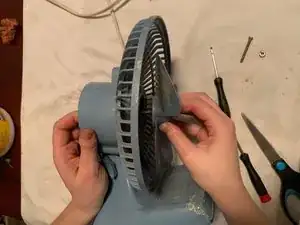

  4. YZgAPME1amtkAwqw
    YZgAPME1amtkAwqw
    Zt3PXSabdWMxdYEM
    DA51X1A4l5ocOcSG

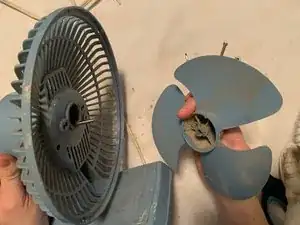

    • While holding the back of the fan, pull the blades.

    • Take off the old blades and put them aside.

  5. nUi6O2L5qACfDQRM

    • Take the motor out.

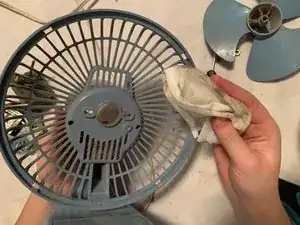

  6. JVJWYwvnChYhTABN
    JVJWYwvnChYhTABN

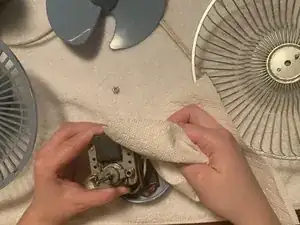

    sRKkWCWeLeHVIRkS

    • Clean all parts of the fan.

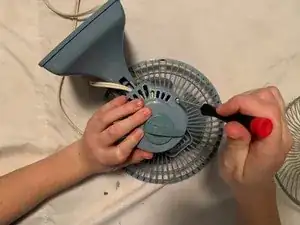

  7. cFgLAyEHpA4ML1Px
    cFgLAyEHpA4ML1Px

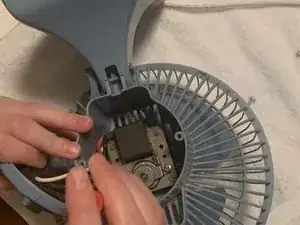

    1SguI2FASYLFSfeM

    • Put the motor and back cover back on.

    • This can be done by following steps 2, 3, and 5 in reverse.

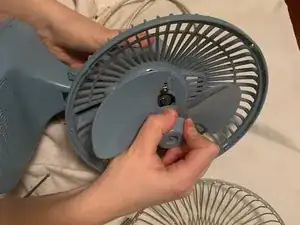

  8. EEXVPdUdJUXkF11S

    • Place the new blade onto the metal rod on the front of the fan.

    • Push the blades onto the rod so that it is sturdy.

    • Replace the front cover.
