Tagital T9X Speaker Replacement

Geschrieben von: Adam Bamforth
  • Kommentare: 1
Tagital T9X Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

Use this guide to replace the speaker in your Tagital T9X.

  1. 6XHhU1eJOBdjYdb1

    • With the tablet turned off, remove the two 5mm Phillips head screws from the top of the tablet.

    • These screws are extremely easy to lose. Be sure to store them in a safe place.

  2. fXRGuOQrSTH2UwHO

    • Use a 1 cm wide plastic opening tool to remove the back panel. Go around the entire back panel to ensure safe removal.

    • The power, return, and volume buttons are not firmly secured to the panel; it is likely they will fall off in the process of removing the panel.

  3. fQ5hVjirXXcBamOa

    • Detach speaker wires from motherboard.

    • The wires are fragile and may break off while handling them.

  4. DAy1Q1lMaY5mKdWV

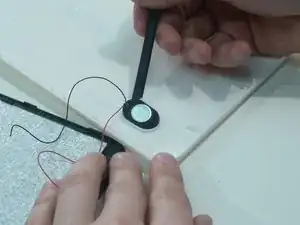

    • Use the plastic spudger to remove speaker from the back panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
