Tascam Portastudio 05 Broken Play Switch

Geschrieben von: Cafony
Veröffentlicht: 24/10/22
  • Kommentare: 0

Tascam Portastudio 05 Broken Play Switch

Veröffentlicht: 24/10/22

Teardown

Einleitung

When your ON/OFF switch fails, follow this guide to get your Portastudio operational.

  1. Yrob6es63CYaSR6r
    Yrob6es63CYaSR6r
    1wrrfvsGln3wsOMU
    b1W1GXSSkRpSrIMG

    • Remove the power buton

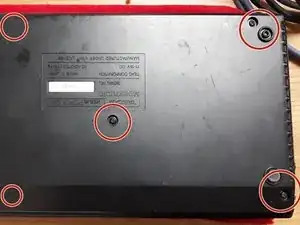

    • Remove the screws from back

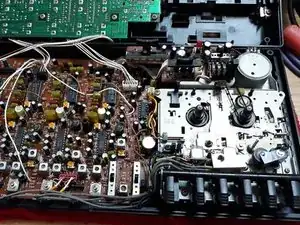

    • Gently open the device

  2. BGSxmV6mekOZovYp
    BGSxmV6mekOZovYp
    WCONEpD1S2NKcTmK
    RTGmEFLBVLbDVYF4

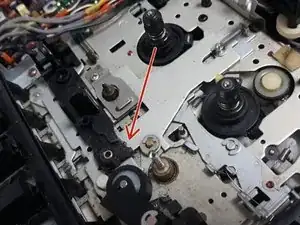

    • Remove this screws

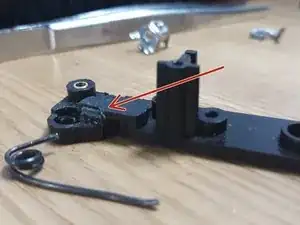

    • The PLAY doesn't work because the plastic is broken. It holds a spring.

    • Gluing the plastic will not work, as spring pressure is too high.

  3. JgRHIEg1DvCalBsD
    JgRHIEg1DvCalBsD
    H2NCcTPKGS3tQqPB
    qDLHJAyxiosRSaCO

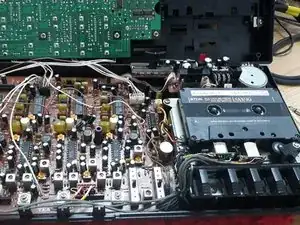

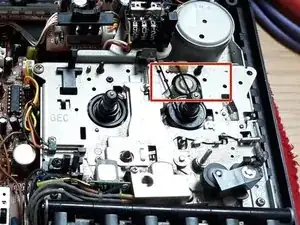

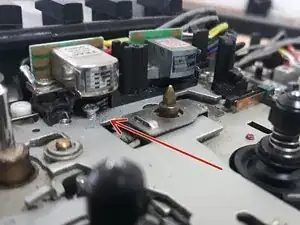

    • To make a good support for the spring, drill a hole on the metal and ADD a little screw.

  4. Y1TfVmSjIwk41xe6
    Y1TfVmSjIwk41xe6
    MrKWroqSKRP1hs5t

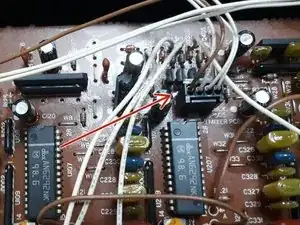

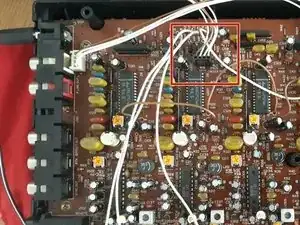

    • This little plug has the sound output of the four tracks split. You can add independent outputs from tape.
