Technostar Sandwich Toaster Thermal Fuse Replacement

Geschrieben von: charlottevisser63
  • Kommentare: 2
Technostar Sandwich Toaster Thermal Fuse Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

A toaster's fuse will often fail over time. This guide will show you how to fix your Technostar Sandwich Toaster.

  1. 1mXpQGcAhe6bmIeE

    • Open the toaster.

    • Remove the four screws which attach the mold.

  2. xIJvUSpOhiUtXpe2
    xIJvUSpOhiUtXpe2
    SYCZFLfKBD2BJuPA

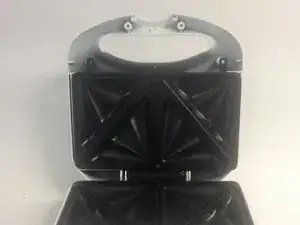

    • Remove the mold to get access to the heating coil.

  3. RUHuvFgHIBTGGWbV

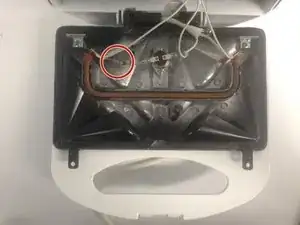

    • Find the thermofuse.

  4. CgWbduhuiFM5BSw4
    CgWbduhuiFM5BSw4
    ThLqn65jCULspZAq

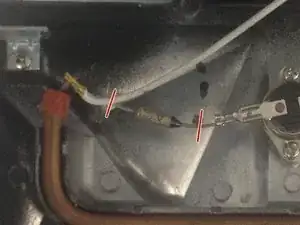

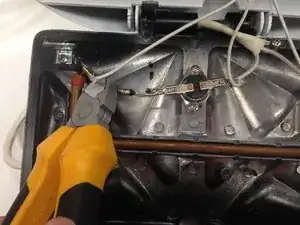

    • Cut the two wires that connect to the thermal fuse.

  5. epTNpSkMT1WHDdcE
    epTNpSkMT1WHDdcE
    6KLvOIabNeHVepo3

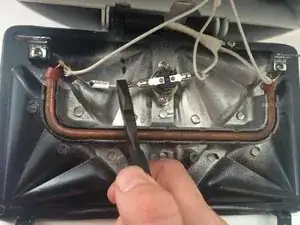

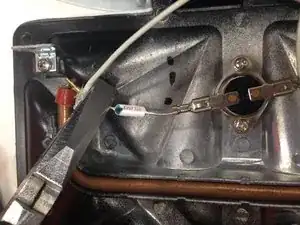

    • Align the thermal fuse with the open wires.

    • Put the spade connectors over the wires.

    • Using pliers, clamp the wires together.

  6. 3J1ruSVu6OxJhkpt

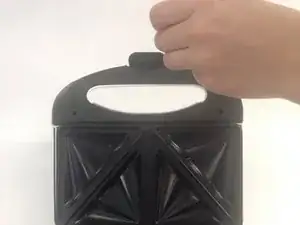

    • Replace the molds.

    • Replace the four screws which attach the mold.
