Einleitung
Der eingebaute Lautsprecher ist super für Experimente außerhalb deiner perfekt ausgestatteten Studioumgebung. Aber was tun, wenn er nicht mehr geht? Ersetze ihn einfach.
Dies Anleitung zeigt dir, wie du den Lautsprecher deines OP-1 austauschst.
-
-
Die vier länglichen Tasten der Klaviatur kannst du von links her lösen.
-
Die acht kleineren Tasten löst du von unten.
-
-
-
Der Scherenmechanismus der acht kleinen Tasten blockiert die darunter liegenden Schrauben.
-
Wieder mit einem Opening Tool oder einem Opening Pick kannst du diese einfach herausheben.
-
-
-
Löse die zwölf Schrauben mit einem Phillips #00 Schraubendreher.
-
Dann ziehe einfach die vier Drehknöpfe und den Lautstärkeregler ab.
-
Jetzt kannst du das Keyboard leicht anheben und versetzt nach hinten ablegen.
-
-
-

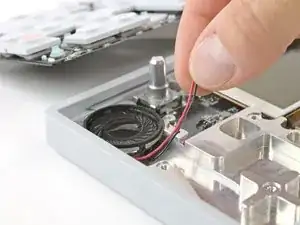

Trenne die Verbindung des Lautsprechers indem du den Stecker nach oben hebelst.
-
Die Kabel laufen durch eine kleine Kerbe, in die sie hineingeklebt sind.
-

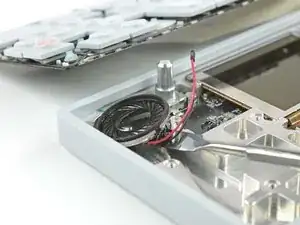

Funktioniert alles, kannst du die Kabel des alten Lautsprechers vollständig aus der Kerbe herausziehen.
-
-
-

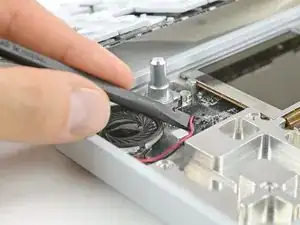

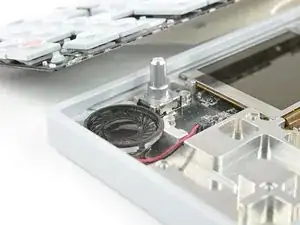

Nun kannst du den Lautsprecher selbst heraushebeln. Sollte der Plastik-Spudger keine Wirkung zeigen, nimm einen Metallspatel, da der Lautsprecher ebenfalls eingeklebt ist.
-
Arbeite die Schritte in umgekehrter Reihenfolge ab, um dein Gerät wieder zusammenzubauen.
