Teenage Engineering OP-Z Function Key Plastic Buttons Replacement

Geschrieben von: Tobias Isakeit
  • Kommentare: 0
Teenage Engineering OP-Z Function Key Plastic Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

35 - 50 Minuten

Einleitung

Use this guide to replace the function key plastic buttons of your OP-Z.

The actual button flex cable is a separate guide/part. Please disassemble and check your device before purchasing any parts.

  1. 3P3PtudTARX4VYYo
    3P3PtudTARX4VYYo
    wV3ZGSxOE1EQcKRX
    kabawgJinAQaRfXx

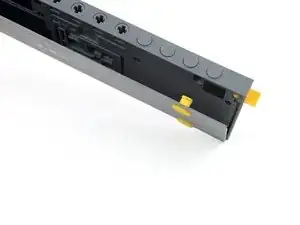

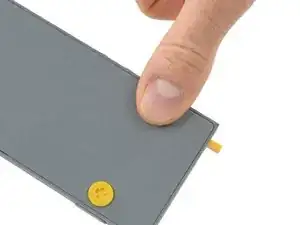

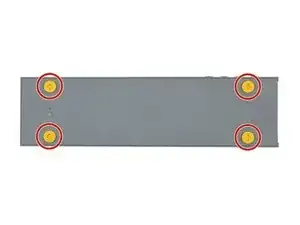

    • Unlock the four rubber feet by turning them 90° counterclockwise using your thumb or finger tip.

    • There is a tiny mark on every foot facing the bottom edge of the OP-Z. After turning them they should face towards the short edge where the on/off switch is.

  2. pueLJe1vTPDuZsOa
    pueLJe1vTPDuZsOa
    QbptcMmcnDwpxrCE

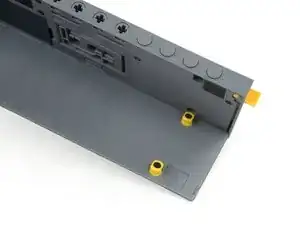

    • When turning the OP-Z over again the bottom plate should come off by itself (thanks gravity).

    • If the bottom plate won’t come off you might want to make sure every foot is rotated correctly and gently tug on one of them.

  3. QCjZngZMmxyi3pxU

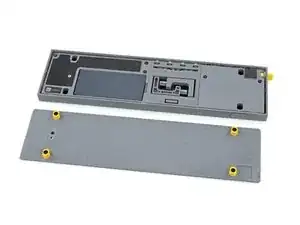

    • Remove the bottom plate including the rubber feet.

  4. p3FkSHtKFCvwrqeh
    p3FkSHtKFCvwrqeh
    viRjEDse1dT2OS4X

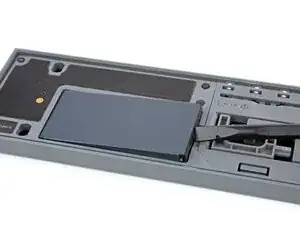

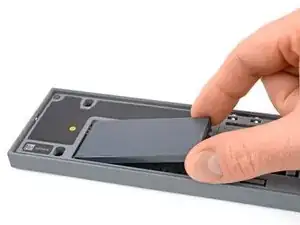

    • Use your fingernail or a spudger to lift the battery on the right side where the notch is.

  5. y6hJwRZefWmmEoyh
    y6hJwRZefWmmEoyh
    vAo4CAkJUTfGyAjL

    • Remove the battery.

    • When installing the new battery make sure you put it in contact side first.

  6. XgfsXNdbNChaCItV
    XgfsXNdbNChaCItV
    iZLHrpyCV3hLsPxA

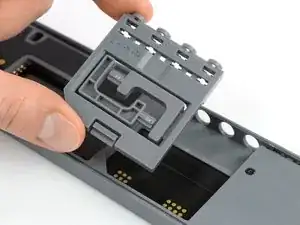

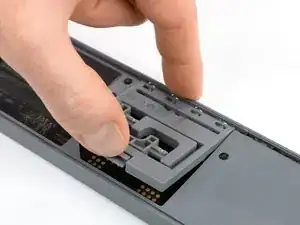

    • Use your finger or a spudger to push up on the small tab on the bottom of the module.

    • Lift the module up and out of its recess bottom first.

  7. 24rAVGncEwtxrq2c

    • Remove the module.

    • When inserting another module make sure you put it in outputs first. Then push down the bottom part for the tab to engage.

  8. jITUlDVHew4Tk6jG

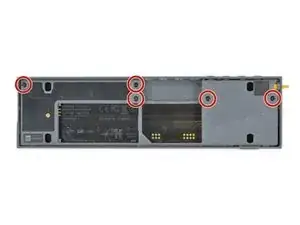

    • Remove the five Torx T4 screws.

  9. jEjjakdWPfPVCLfV
    jEjjakdWPfPVCLfV
    356PLic2YIghgbwH

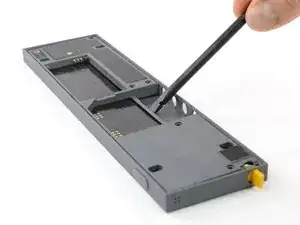

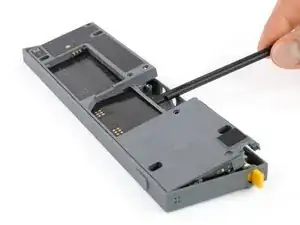

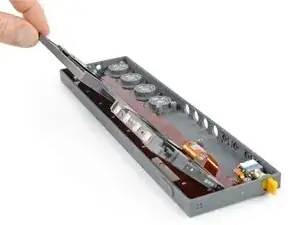

    • Place a spudger in the cutout of the extension module to lift the midframe.

    • Be careful not to damage the highway flex cable underneath.

    • Don’t remove the midframe yet. It is still connected to the rest of the OP-Z.

  10. K36FYIB6YETIaIqa
    K36FYIB6YETIaIqa
    WofBDtn2woT3g4DZ
    kBLJXjtNWgi5bRUa

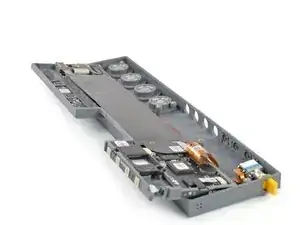

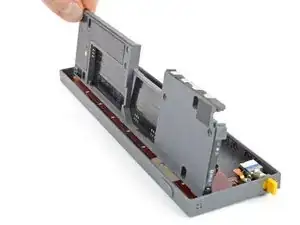

    • Flip the midframe over to gain access to the flex cable connector underneath.

  11. O1DGquvrAsqNIBJF
    O1DGquvrAsqNIBJF
    OLba64cQMSshZHEI

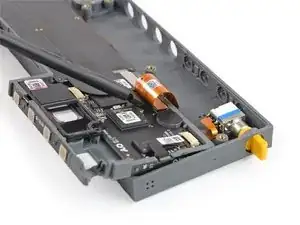

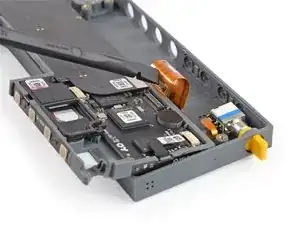

    • Use the flat end of a spudger to disconnect the flex cable from the front panel assembly.

  12. jWLHHJWPgXE1FgHs
    jWLHHJWPgXE1FgHs
    cFEDKRHaqqc1koTT

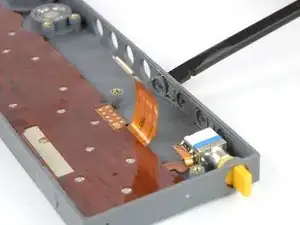

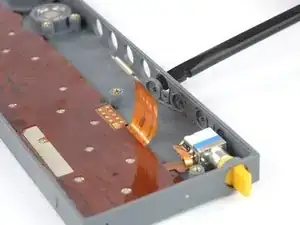

    • Use a spudger to push the first set of function buttons inwards.

  13. AkO3exfo4u6k1Vlm

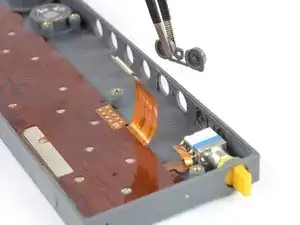

    • Remove the first set of function buttons.

    • This pair has a circular alignment post between the buttons and a dot mark on one of the buttons.

  14. JY4ycoTefIUbokNO
    JY4ycoTefIUbokNO
    dnYMGkYxSPEqVJqP

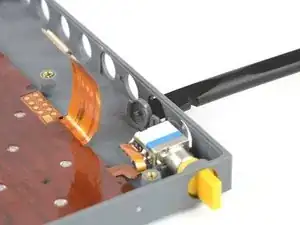

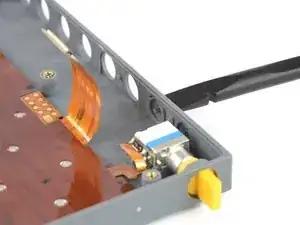

    • Use a spudger to push the second set of function buttons inwards.

  15. wLffEGO4dyyaUPTZ

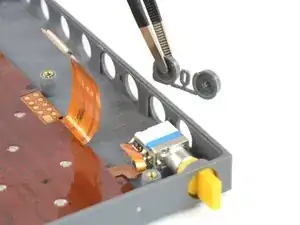

    • Remove the second set of function buttons.

    • This pair has an elliptical alignment post between the buttons and a straight mark on one of the buttons.

Abschluss

To reassemble your device, follow these instructions in reverse order.
