Teenage Engineering OP-Z Pitch Bend Rubber Button Replacement

Geschrieben von: Tobias Isakeit
  • Kommentare: 0
Teenage Engineering OP-Z Pitch Bend Rubber Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

35 Minuten

Einleitung

Use this guide to replace the pitch bend rubber button of your OP-Z.

The actual button flex cable is a separate guide/part. Please disassemble and check your device before purchasing any parts.

  1. 3P3PtudTARX4VYYo
    3P3PtudTARX4VYYo
    wV3ZGSxOE1EQcKRX
    kabawgJinAQaRfXx

    • Unlock the four rubber feet by turning them 90° counterclockwise using your thumb or finger tip.

    • There is a tiny mark on every foot facing the bottom edge of the OP-Z. After turning them they should face towards the short edge where the on/off switch is.

  2. pueLJe1vTPDuZsOa
    pueLJe1vTPDuZsOa
    QbptcMmcnDwpxrCE

    • When turning the OP-Z over again the bottom plate should come off by itself (thanks gravity).

    • If the bottom plate won’t come off you might want to make sure every foot is rotated correctly and gently tug on one of them.

  3. QCjZngZMmxyi3pxU

    • Remove the bottom plate including the rubber feet.

  4. p3FkSHtKFCvwrqeh
    p3FkSHtKFCvwrqeh
    viRjEDse1dT2OS4X

    • Use your fingernail or a spudger to lift the battery on the right side where the notch is.

  5. y6hJwRZefWmmEoyh
    y6hJwRZefWmmEoyh
    vAo4CAkJUTfGyAjL

    • Remove the battery.

    • When installing the new battery make sure you put it in contact side first.

  6. XgfsXNdbNChaCItV
    XgfsXNdbNChaCItV
    iZLHrpyCV3hLsPxA

    • Use your finger or a spudger to push up on the small tab on the bottom of the module.

    • Lift the module up and out of its recess bottom first.

  7. 24rAVGncEwtxrq2c

    • Remove the module.

    • When inserting another module make sure you put it in outputs first. Then push down the bottom part for the tab to engage.

  8. jITUlDVHew4Tk6jG

    • Remove the five Torx T4 screws.

  9. jEjjakdWPfPVCLfV
    jEjjakdWPfPVCLfV
    356PLic2YIghgbwH

    • Place a spudger in the cutout of the extension module to lift the midframe.

    • Be careful not to damage the highway flex cable underneath.

    • Don’t remove the midframe yet. It is still connected to the rest of the OP-Z.

  10. K36FYIB6YETIaIqa
    K36FYIB6YETIaIqa
    WofBDtn2woT3g4DZ
    kBLJXjtNWgi5bRUa

    • Flip the midframe over to gain access to the flex cable connector underneath.

  11. O1DGquvrAsqNIBJF
    O1DGquvrAsqNIBJF
    OLba64cQMSshZHEI

    • Use the flat end of a spudger to disconnect the flex cable from the front panel assembly.

  12. ttppQiobIcQoHkri
    ttppQiobIcQoHkri
    5x4GKNWhyhWMyMoj

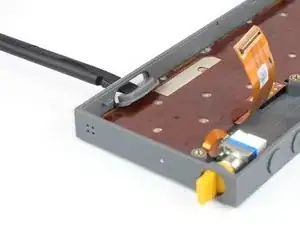

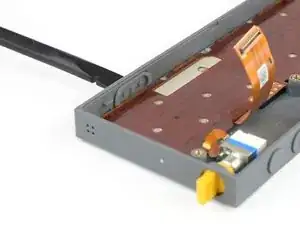

    • Use a spudger or your finger to push the pitch bend button inwards.

  13. 2WfRStv3eglgGN4i

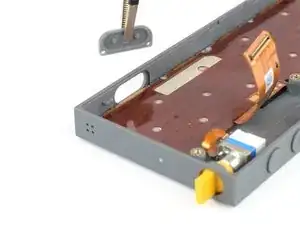

    • Carefully lift and remove the pitch bend button.

    • The button has two small holes which engage with two pins in the midframe.

    • Make sure the two holes and pins align when reinstalling the new button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
