Tektro Aires Disc Brakes Brake Pad Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 - 40 Minuten

Einleitung

  • The Tektro Aries Mechanical Disc Brake System (MD-M300 [CN]) is the focus of this replacement, specifically its brake pads.
  • The bike model is not relevant to this replacement.
  • Any debris including skin oils will affect the performance of the brake pads possibly causing the brake system to fail.

  1. xHp1EtMDUxNichOf

    • Bend retention pins straight using a pair of large needle nose pliers.

  2. dhnGIAQpneopxPRt
    dhnGIAQpneopxPRt
    RRWXlqPKUinJHAGe

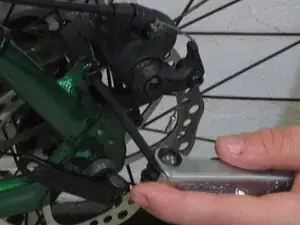

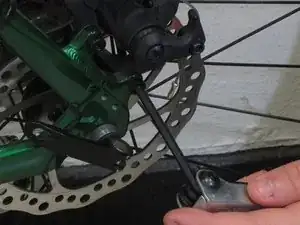

    • Unfasten the two mounting bolts using a 5mm Hex Key.

    • Different bike models will have different mounting bolt configurations.

  3. AsiuRVMWnYSPTCiW

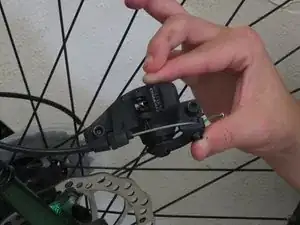

    • Remove the brake calliper from the brake disc.

  4. vKIdW3xpuWfB12dx

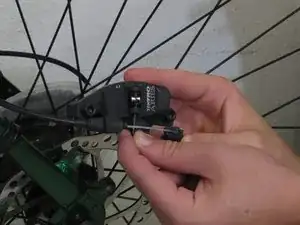

    • Remove the retention pin.

  5. uPxPp2LNPC6H64wH

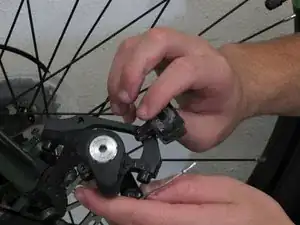

    • Remove the brake pads from the calliper.

    • Make sure that no skin oils get on the brake pad's rough brake surface (Doing so will affect brake performance).

  6. LGOeloseDKpLxai5

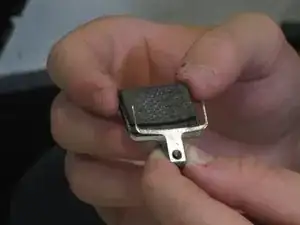

    • Place the spring on the new Tektro Disc Brake Pad as shown.

    • The other brake pad will go on the spring opposite the first brake pad.

  7. wtu5WgZRMJ1BsveC

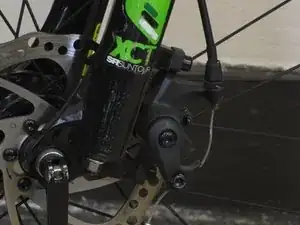

    • Follow the steps listed previously on the front braking system as needed.

Abschluss
  • The steps for the front wheel are the same as the back wheel.
  • Follow steps in reverse for reassembly.
