How to replace the display assembly on the Telstra Dave 4G ZTE T83.
Werkzeuge
Ersatzteile
-
-
Remove the four H2 screws from the back of the phone. Do not lose the black rubber rings on the screws.
-

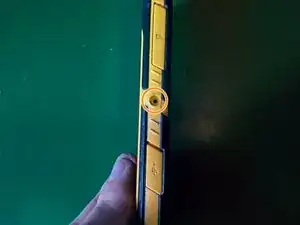

Remove the two H2 screws, on either side of the phone. Do not lose the red seal that are on the screws.
-
Using a prying tool work off the back of the case. Ensuring not to lose the port covers. Be careful to note the position of connector covers. Have the tabs at the end of the connectors in place before clipping the phone completely back together.
-
-
-
Remove the two black Philips head screws from the battery connector cover.
-

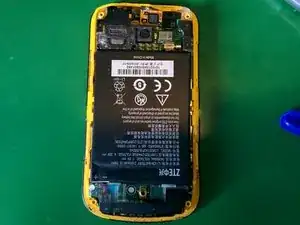

Lift the battery cover away from the logic board
-
-
-

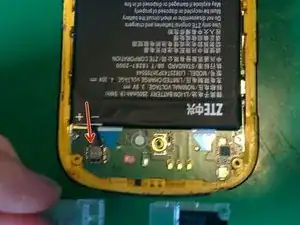

Disconnect the battery connector from the logic board. Do so by inserting a flat tool under the wires on the indicated side and wedging it up off the logic board.
-

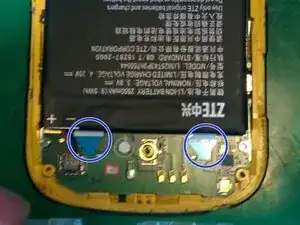

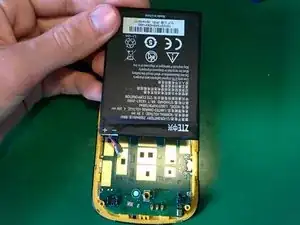

Then remove the double sided tape using the blue tabs provided. Simply grab a tab and pull until it comes out tweezers are really good for beginning the process.
-
-
-

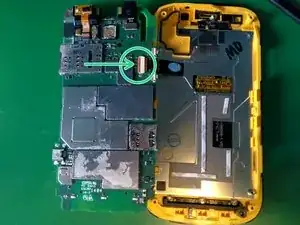

Disconnect the digitizer cable from is socket, flip the brown clasp up from indicated edge and gently remove the cable.
-
-
-

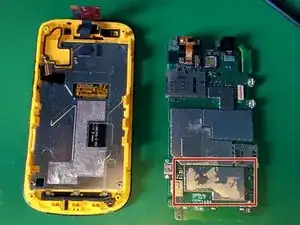

Separate the logic board from front display. Apply heat to the front glass to loosen the adhesive, using a prying tool to separate the board. Be careful and move slowly, it is very strong.
-
Be careful to remove the display first from the right side as there are clips along the left side.
-

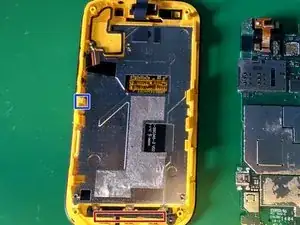

Ensure not to damage the LCD cable, remove once accessible by releasing the brown clasp from indicated side.
-
-
-
Carefully remove front speaker from the display assembly with spudger tool, can be accessed from indicated side.
-
-
-
Display assembly should be fully separated, and be able to be replaced
-
Reassemble phone by following steps in reverse, using double sided tape where required to hold logic board and battery in place.
-
To reassemble your device, follow these instructions in reverse order.
