Tengda S5 Plus Speakers Replacement

Geschrieben von: Andrew Lam

Kommentare: 0

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

This guide is help you reach your speakers in case you need to clean or replace it. The only tools you will need for this guide are a plastic prying tool and a Phillips #00 screwdriver.

Werkzeuge

Schritt 1

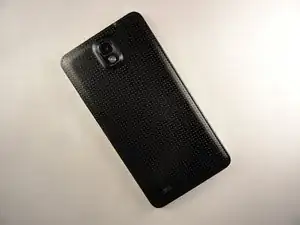

Place the phone screen-side down.

Schritt 2

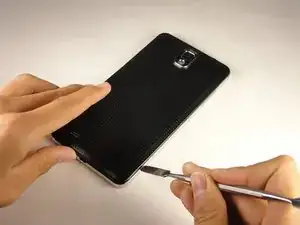

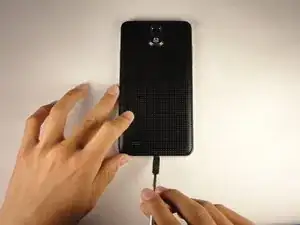

Using your fingernail or any prying tool (we used the Metal Spudger), begin to pry away the back panel starting at the bottom of the phone.

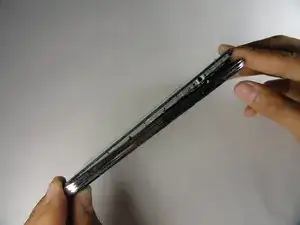

Continue to work your way around the phone counterclockwise until you can pull the back cover off.

Schritt 3

Using either your thumb or an iFixit opening tool, remove the battery and set it aside.

Schritt 4

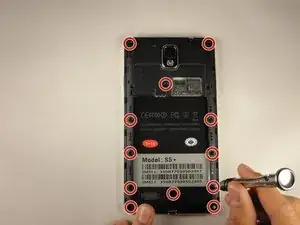

Unscrew the twelve 3 mm screws from the back panel using a Phillips #00 screwdriver.

Schritt 5

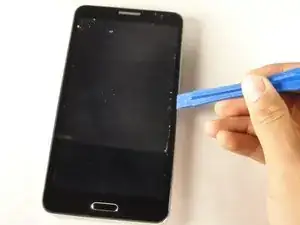

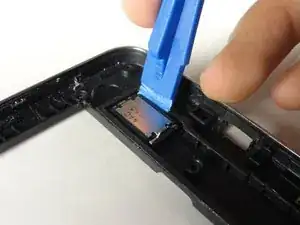

Using the plastic opening tool, create space between the front screen and the metal casing.
Once the screen is separated from the back panel, pull the two pieces apart.
