Texas Instruments TI-15 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

When your calculator's display turns on and right back off, it is time for a new battery. Replacing the battery for the TI-15 will take approximately less than 10 minutes to get you back in business. This guide will show you step-by-step the replacement for a TI-15 battery.

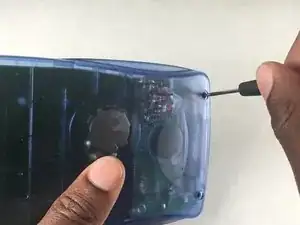

  1. FhdCFUDTdxUnZFC6
    FhdCFUDTdxUnZFC6
    LLocinDv2VdRX3dG
    jdCy2BK3YgNMFOkD

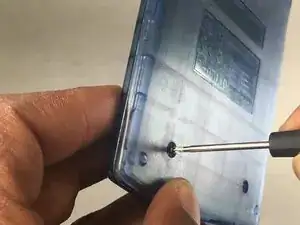

    • With a Y000 screwdriver, loosen the four 1mm Phillips head screws and set them aside.

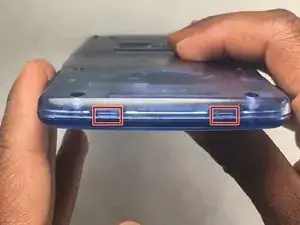

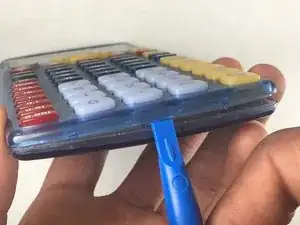

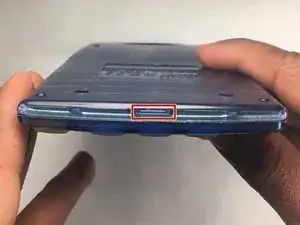

  2. CyfGHKUxuSdEfLoP
    CyfGHKUxuSdEfLoP
    XIGD2M2CkpIMaTma
    drUC4IoDEFX5cZMV

    • With an iFixit opening tool, pry apart a total of 3 notches on the top and bottom of the calculator.

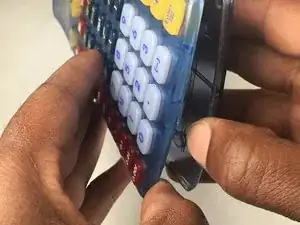

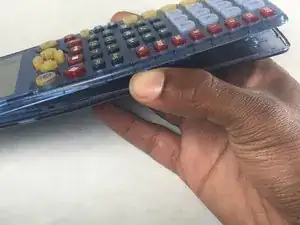

  3. oqeJaGgYhUDwHbFG
    oqeJaGgYhUDwHbFG
    eAIPoSJ2OqsZvnAU
    3lwcNIfpufPWqFQ5

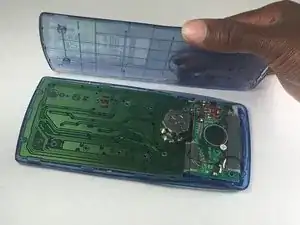

    • Separate the two panels to reveal the calculator's green circuit board.

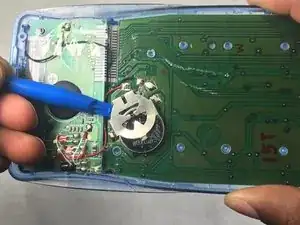

  4. dgLaPuTkvbNhDCOB
    dgLaPuTkvbNhDCOB
    cIFSCFXheREuwRIT

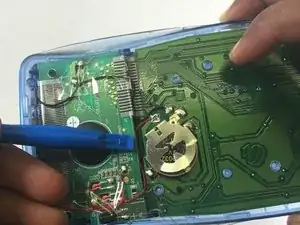

    • Using the iFixit opening tool , slide underneath the battery cover until the battery comes out.

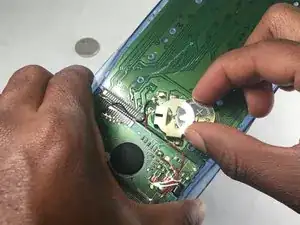

  5. UT32EQZtM5nafskq
    UT32EQZtM5nafskq
    pJsG3IbXF51ETHfE
    p6mKjHIrTRHr6Aw3

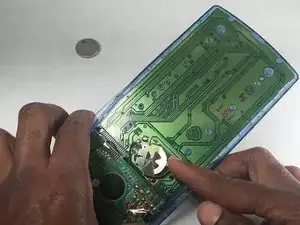

    • Remove the old battery and insert the new battery.

    • Properly dispose or recycle the old battery.
