Texas Instruments TI-30X IIS Battery Replacement

Geschrieben von: Ryan
  • Kommentare: 5
Texas Instruments TI-30X IIS Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

This guide goes step-by-step on how to safely replace the battery on your TI-30X IIS scientific calculator.

  1. LLHQ1K2DhDNBpACU
    LLHQ1K2DhDNBpACU
    SAFPiovHu4GCSBo2
    cvvOExLHXLdsatWR

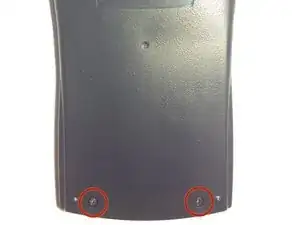

    • Ensure that your calculator is a TI-30X IIS by looking in the top right corner of the front face.

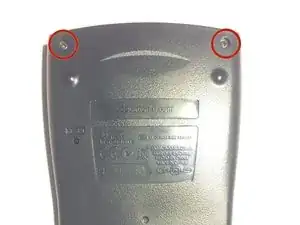

    • Look at the rear face of the calculator and locate the four case screws. There are two at the top and two at the bottom.

  2. Wjt1vuhWXTBKHiNj
    Wjt1vuhWXTBKHiNj
    TasFRJpkN3jvSaUJ

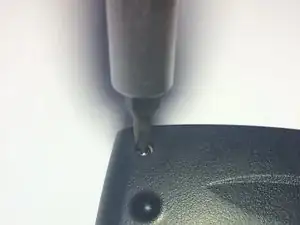

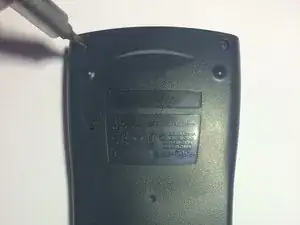

    • Use a Philips 00 screwdriver to remove the four case screws on the rear face of the calculator.

    • Be sure to save the screws in a secure place as they are small and easy to lose. They will be needed later for reassembly.

  3. vBm2bOErlDAlSuvr
    vBm2bOErlDAlSuvr
    qXpjT5RXnURK5Dv3
    rogWrBgUJvMvkVq1

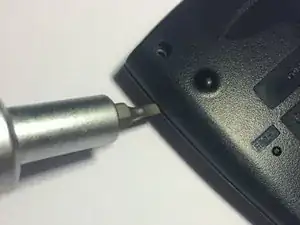

    • With all four screws removed, use a flathead screwdriver or similar flat object to separate the front and rear casings.

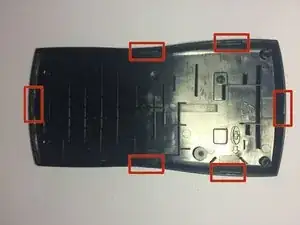

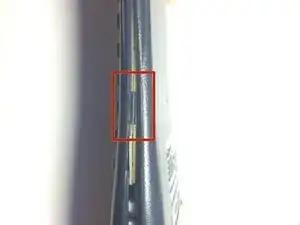

    • There are six clips that keep the cases together. These areas will require extra force to separate, but use caution to not fracture the plastic pieces.

    TI should have indicated the 6 clips on the back or sides of the calculator. Thanks for showing!

    James Shyu -

    I have a TI-30X IIS but mine has 2 clips at the top about 1/3 of the way in at each side and the battery is attached to the backside (as someone commented below) with a wire attaching it to the front, so be careful separating the sides..

    Thanks for this tutorial!!!

    Free Movie -

  4. 6lrEQAWQs5Z6jVFB
    6lrEQAWQs5Z6jVFB
    HvEwygPHYmwYxcqA
    cAXt23wgtd4OksCF

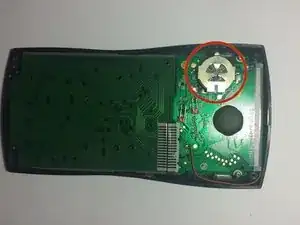

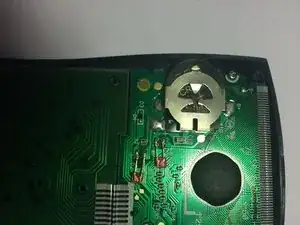

    • With the rear case off, the battery is exposed and accessible.

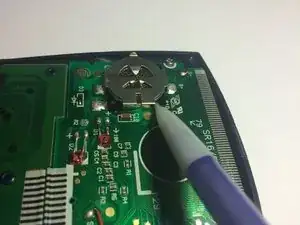

    • Using a pointed tool, slide the battery out of its terminal towards the near edge.

    • Once the battery is protruding from the contacts, remove it with your fingers.

    This process varies as there are two versions I know of, one like the one in the picture, and one with the battery in the back cover.

    So that should help if you are scratching your head saying why they look different!

    the bongo guy -

    Thanks the bong guy

    Alexander Sides -

    Thank you bongo guy. Mine was on the back, which was connected to the front by a wire, so be careful separating the sides.

    Free Movie -

  5. BFZJWUP2wAqtb5QU

    • Properly dispose of the old battery.

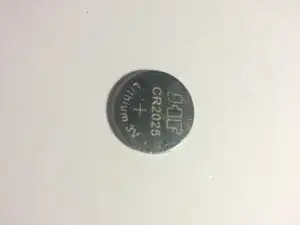

    • Replace the battery with an identical one, positive terminal up and negative terminal facing down towards the circuit board.

    • Following the previous steps in the reverse order to reassemble the calculator.

Abschluss

To reassemble your device, follow these instructions in reverse order.
