Texas Instruments TI-5130 Printer Unit Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

Follow this guide to remove and replace the printing unit in the TI-5130 electronic calculator.

  1. a6A1hm5JqJYAR456
    a6A1hm5JqJYAR456
    Rd3to15qE1EEE6SU

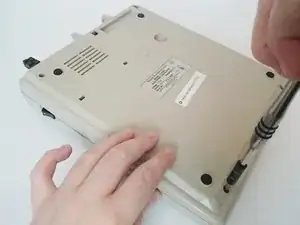

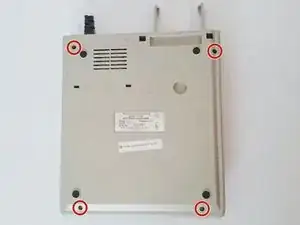

    • Flip the calculator over and remove the 4 main 10mm screws with a PH1 screwdriver.

  2. HI6YajNuAWNKALOi

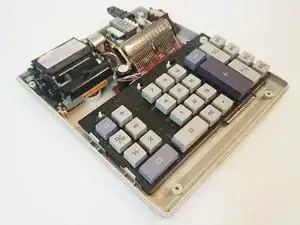

    • Flip the calculator back over and remove the top cover.

  3. BubO1rHkSoLcUrYV

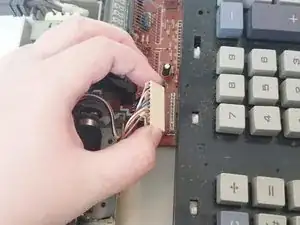

    • Disconnect the printing unit from the motherboard by pulling up on the connector – located in the bottom left of the motherboard.

  4. JyrtWXZAffntkkxQ

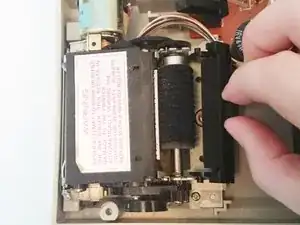

    • Remove the ink cartridge by pushing the tab back then lifting it out to gain access to the screw that holds the printer in place.

  5. nOLrcWaWvRjsKNFv
    nOLrcWaWvRjsKNFv
    LOZaypJT1jVoVZiM

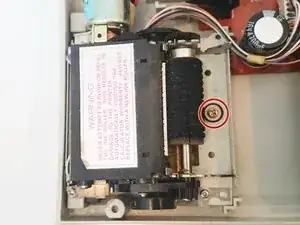

    • Using a PH1 screwdriver remove the 10mm screw that holds down the printer unit.

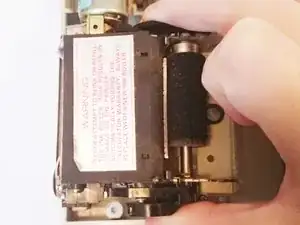

    • Remove the printer unit by lifting it up.

Abschluss

To reassemble your device, follow these instructions in reverse order.
