Einleitung
This guide demonstrates and describes proper removal and replacement of the back casing. It is needed to access other parts for repair or replacement.
Werkzeuge
-
-
Locate battery cover on the back of the case.
-
Slide battery cover to the right reveal the batteries.
-
-
-
Remove battery cover.
-
Slide the red lock down.
-

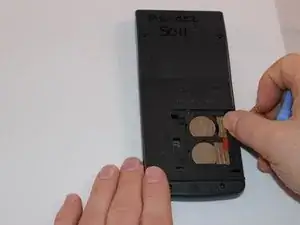

Slide the metal tab to the right of the top battery.
-
Remove the 3-Volt Lithium Coin Cell Battery.
-
Slide the red lock up.
-
Slide the metal tab to the right of the bottom battery.
-
Remove the 3-Volt Lithium Coin Cell Battery.
-
-
-

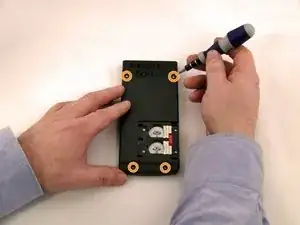

Using a Torx, T-6 star-bit screwdriver, unscrew four 7.38 mm screws from battery housing.
-
Unscrew four 7.15 mm screws from back casing.
-

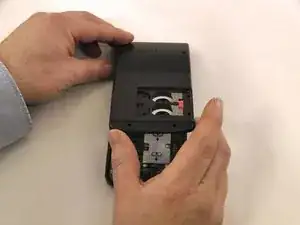

Using the blue plastic opener tool along the seam of the case, pry off front casing.
-
To reassemble your device, follow these instructions in reverse order.
