Einleitung
If your screen Or motherboard is broken this guide is for you. The screen is tethered to the motherboard, so both items must be replaced at the same time.
-
-
Remove the 5mm Philips #00 screw holding backup battery cover.
-
Remove the backup battery cover.
-
-
-
Use plastic opening tool to remove the backup battery. Place the tool in the small cut-out next to the battery and pry the battery out.
-
-
-

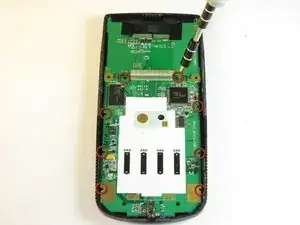

Unscrew the six 7.5mm T6 screws on the back case. You will need to use a screwdriver with a long and skinny head.
-
-
-

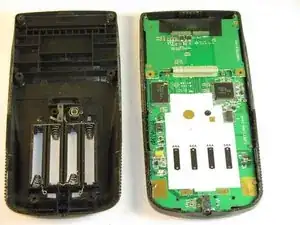

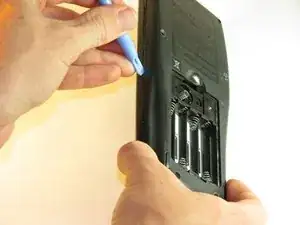

Pry back case off. Insert the plastic opening tool in the track for the protective cover and pry the halves of the case apart.
-
-
-

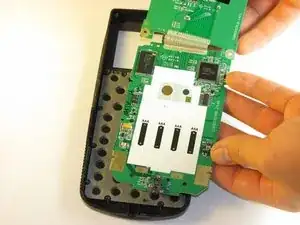

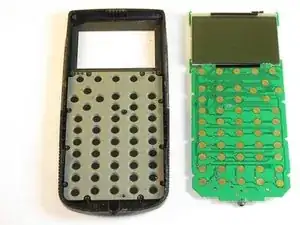

Carefully remove the motherboard and screen. Grab the board by its side with one hand and the screen with the other. Carefully lift the two parts up.
-
To reassemble your device, follow these instructions in reverse order.
15 Kommentare
Does anyone have any advice on acquiring replacement screens for the TI series? I was considering buying broken TIs on e-bay, but that may be unreliable.
Fixing TI83+'s is becoming addictive. Google Cemetech Forum on the net and see how he removes the screen from the Mother Board and solders wires permanently. I might add that he tests for resistance (ohms) first to determine if in fact that is where the problems exist. If I read between the lines, he tends to think that the screen/mother board ribbon cable is the primary culprit behind problems with the TI83's
shrinertom@yahoo.com
My TI-83 Plus, the screen has turned Black, like to know where to send it to have it repaired e-mail address, (BagManOne@ecite.com)
Nothing is broken, the screen has turned Black, need to send it off and have it fixed, I can not do it my self because of the condition of my hands
It may not be broken. Try adjusting the screen contrast down.
All I needed was to know the T6 Screwdriver size, the carved-out screw-holes made me less worried about the bits of plastic coming out of mine. Thanks!
