Einleitung

In this guide we will show how to remove the display to replace it if broken.

  • incomplete we currently do not know how to do this and can find no information on it
  1. 626fFvREnm5uBFVo
    626fFvREnm5uBFVo
    OO2NmrhT1WR3o3Pu
    pQ1mZNIKiCTCtiNG
    • The first step to any repair operation is to remove the front cover.

    • Grab the back of the calculator with one hand and the cover with the other.

    • Pull the cover off from one of the sides for easy removal.

  2. WnucraynOGCWynmp
    WnucraynOGCWynmp
    i2isuLVEaFIriU6E
    • Orientate the calculator with the top facing towards you.

    • Slide the locking tab,found on the top part of the calculator, to the unlock position.

  3. LSItvlpfiCKAvBIb
    LSItvlpfiCKAvBIb
    b5HlePjOoSgBUuyB
    • "Locking Tab"

    • To remove the back cover, slide the cover away from the locking tab towards the bottom of the calculator until the cover no longer slides.

    • Then with the front of the calculator facing down, pull up on the back cover.

    • The calculator should now be orientated with the front facing down, as shown in picture 2.

  4. CRRUbDrUVGYtPF3P
    CRRUbDrUVGYtPF3P
    q2JUBmOjsEeo1xgA
    ZWgyZChX1evWHAEG
    • The Batteries are now exposed and the calculator is face down with the back towards you.

    • Remove the bottom batteries by pressing the battery towards you while pulling it out from the far end.

    • If you can not do the previous step with your finger try using a flat ended tool such as an Ipod opening tool.

    • After the bottom battery has been removed push or slide the other(top) battery towards you until it is fully exposed in the battery slot.

    • Now simply remove the battery.

  5. kvxOtnLFL1BHrShv
    kvxOtnLFL1BHrShv
    3xvJQBeihWHy5rKm
    3G5iFmQGrHqsddII
    • Using a Philips Screwdriver #00 unscrew the twelve 11.8mm screws shown in the picture and located on the back of the calculator.

  6. AaDwAFInD1NCLHJO
    • Unscrew the 19mm screw located near center of the back of the calculator.

    • Remove the panel being held by the screw.

  7. huOjCjDJGL4Ss4Te
    • Using the same Phillips screwdriver, unscrew the remaining three 11.8mm screws.

  8. vpLsIcpi4t3Cuj5s
    vpLsIcpi4t3Cuj5s
    sHs6CrtTccAZUk4Z
    • Using the Ipod Opening Tool pull up on both sides of the rectangular module while keeping the rest of the calculator flat on a surface face down

    • You may get a lot of resistance from the module. Do not use too much force as you risk damage. Use small amounts of force to work the module out.

  9. XIF4QkdrOANR5nmK
    XIF4QkdrOANR5nmK
    c3HbONTLmKHIUdfV
    • Pull out the rectangular module when it is finally loose enough.

  10. LNFfAB4HTRxWikFY
    LNFfAB4HTRxWikFY
    ttUQHQZPPe4IfUEJ
    • Now pull up on the back cover of the calculator while holding the rest of it flat on a surface.

    • Be careful not to tilt the front of the calculator at this point. The keyboard buttons are now unsupported and will fall out of place.

    Some models might require removing the two battery screws before the back cover can be pulled up. These screws are somewhat smaller than the others but can easily be removed with the same screwdriver.

    Christopher -

  11. dQOdCT5KJtEdFsJe
    dQOdCT5KJtEdFsJe
    iYFd5pXLyZ4ScQZv
    mG3dqyhPBRJjMKJG
    • Pull the motherboard up while holding the rest of the calculator firmly in place

    • The motherboard has now separated from the rest of the calculator

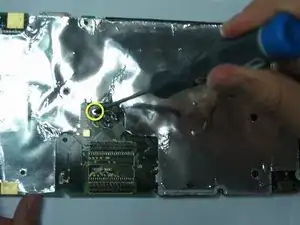

  12. RLaTkaIUaNt4XxZv
    • Place the motherboard flat on a surface with the LCD screen facing down.

    • Using a #00 Philip Screwdriver remove the screw located on the left side of a spring-like object located near the center of the motherboard.

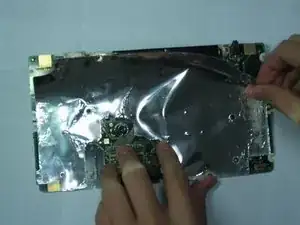

  13. s6MCYwHmrWueZVOA
    s6MCYwHmrWueZVOA
    nWZOM5moorUW4Ep1

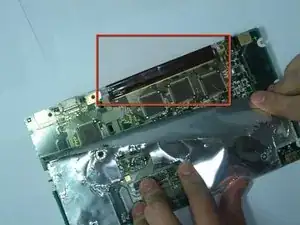

    • Lift up on the material covering the motherboard starting from the upper right corner. Peel foil back only about half way down.

    • Make sure to slowly lift up on the plastic of the covering material and not the foil or the foil will rip.

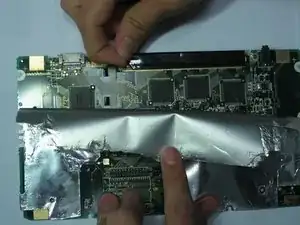

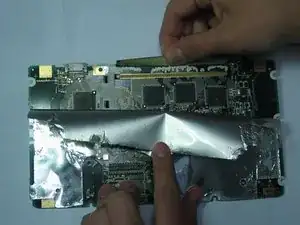

  14. ctJGqSLaarIKMDcG
    ctJGqSLaarIKMDcG
    w6FbwUErvjxpYHt1
    • Now slowly lift up the black tape located at the top of the calculator.

    • You will need to replace tape if removed so if you do not have this replacement part do not attempt to remove it

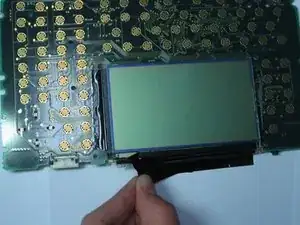

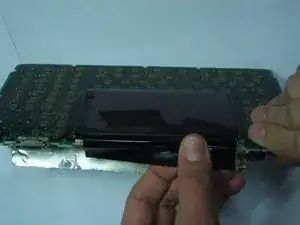

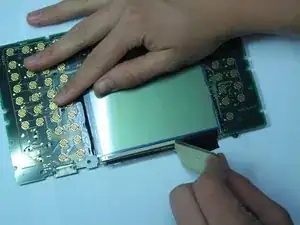

  15. nqsvexLXFYs1I3NI
    nqsvexLXFYs1I3NI
    EGIrLmMivMbVlHkZ
    MsKrIYTCUMjg3VU5
    • Tilt the calculator up from the front so that you can see the LCD screen

    • Finish removing the black tape on this side of the motherboard.

    Hi.

    Really, if you remove the connector strip, the bonding substance is removed, even the electrical cables will be broken. They are so delicate

    I have this experience, and it's impossible to rebond the ancient connector band.

    The main question is: Where to adquire a new connector band?.

    Thx

    Jose Antonio -

    Hello, is there any information which display is used? I would need to change it, but don't find anywhere spare parts... Thx

    Manuel Gosch -

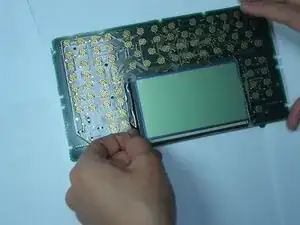

  16. QalXUoPCJ4C3kP1G
    • Do not know next step

Abschluss

To reassemble your device, follow these instructions in reverse order.
