Einleitung
Use this guide to replace an old or faulty battery and revitalize your ThinkPad. If your battery is swollen, take appropriate precautions.
Ersatzteile
-
-

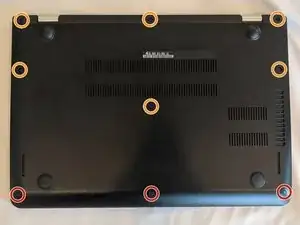

Use a Size 0 Philips screwdriver to loosen the nine screws on the bottom of the case. They will not come out entirely, but you will feel when they are loose enough.
-

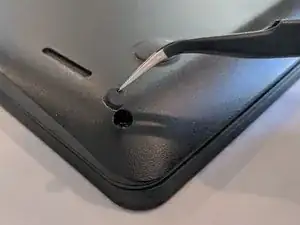

You will need to remove the rubber pads from the bottom three screws using a pair of tweezers.
-
-
-

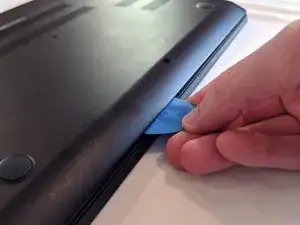

Insert an opening pick into the space between the lower case and the chassis.
-
Slide the opening pick around the case, pushing inward to release the clips securing the lower case. You should feel and hear the clip pop free.
-
-
-
When all the clips have been released, you should be able to easily remove the lower case.
-
-
-

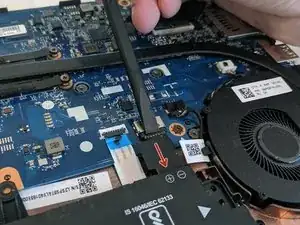

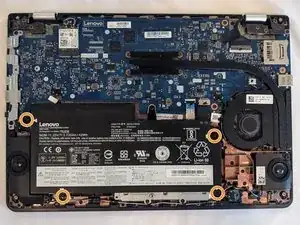

Use a spudger or other plastic tool to push the battery connector in the direction of the arrow, removing it from its socket.
-

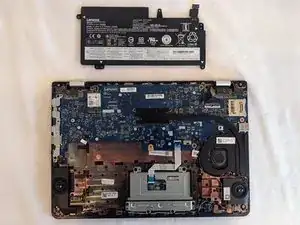

To reassemble your device, follow these instructions in reverse order.
