ThinkPad T420 Hard Drive Replacement

Geschrieben von: Nick

Kommentare: 3

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

15 - 45 Minuten

Einleitung

If the hard drive in your ThinkPad T420 has failed or you wish to install a larger or faster drive, this guide will show you how to replace the hard drive.

Guide notes

This guide does not cover operating system installation.
- I may be able to help locate an image if I know what you need, but there are no gaurantees.
If you are installing an SSD or an thin Advanced Format (AF) drive, a 7mm->9.5mm drive spacer may be required. These are readily available online from sites like eBay if required.
- If you are installing a hard drive, cut the spacer based on the location of the breather hole. Heat kills spinning drives.
ANY UNKNOWN HDP PASSWORDS MUST BE REMOVED BEFORE REPLACING THE DRIVE.
- This will transfer to your new drive since it is stored on the ATMEL chip.
Make a backup of your original drive and image it, if possible. This is optional, but can be used to recover if something goes wrong.
- Note: Not recommended for used systems. Reinstall from scratch, and make a clean image from a fresh install.
Once you are done with the old drive if you do not need it, securely erase it.
- Note: SED's (and FDE) can be erased by deleting the encryption key from the drive rather then a full drive erase.

Werkzeuge

64 Bit Driver Kit

Ersatzteile

Schritt 1

In most cases, it is better to reinstall the OS from scratch rather than image and restore. If the OS install is old, it is often overdue.

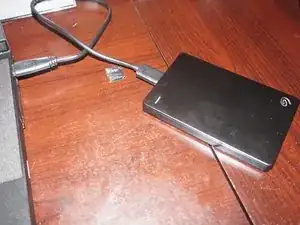

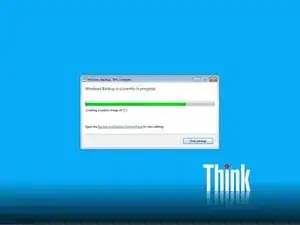

Before replacing the drive, backup your personal files. This can be done by hand, or automated.

Schritt 2

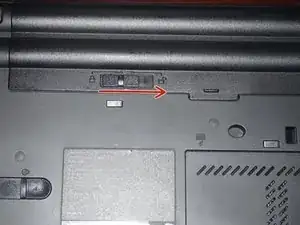

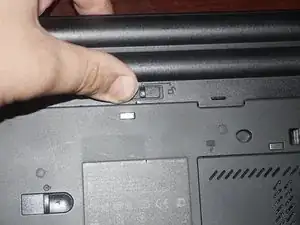

If the system is plugged in, disconnect it from power and remove the battery. Slide the lock tab to the unlocked position.

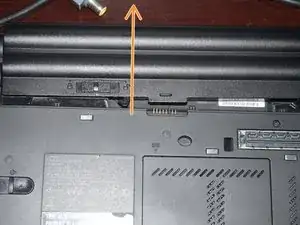

While holding the tab in place, remove the battery.

Schritt 3

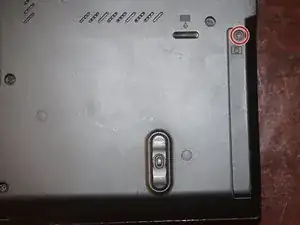

Remove the hard drive door from the system. Use a Phillips #1 bit.

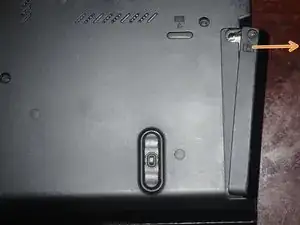

Once the screw is loose, remove the drive cover as shown.

Schritt 4

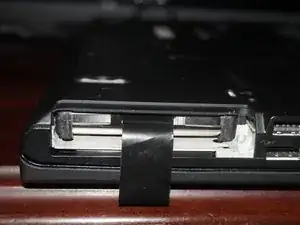

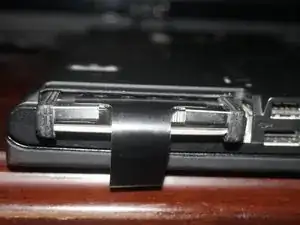

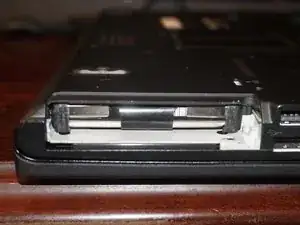

Pull the black tab on the drive caddy to remove the drive.

Schritt 5

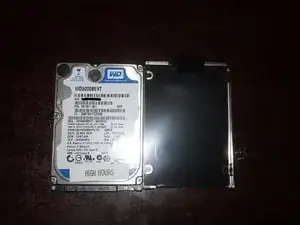

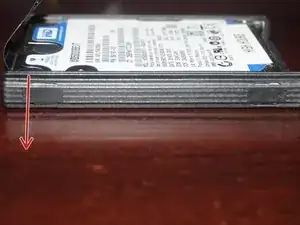

Remove the hard drive bumpers.

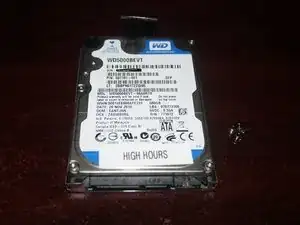

Remove the drive screws using a Phillips #1 screwdriver.

Schritt 6

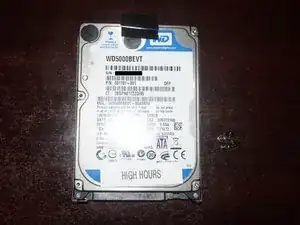

Remove the old hard drive from the laptop. If you intend to keep it, store it in a antistatic bag if possible.

Schritt 7

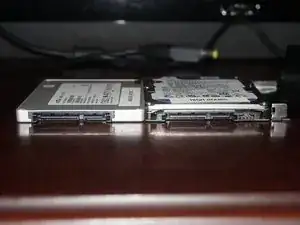

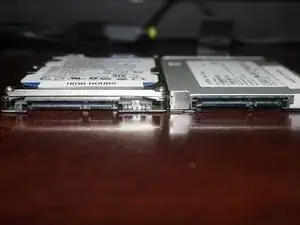

If you are installing an SSD, a 7mm->9.5mm spacer may required.
Install your new drive using steps 6 through 3. Reinstall or reimage the operating system.

Schritt 8

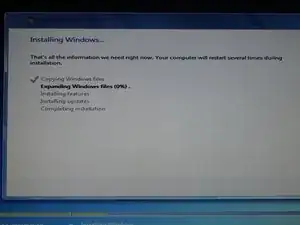

If you are installing Windows, use an official ISO or purchase OEM installation media without a product key.
In order to save time setting up your system in the future, reinstall Windows from scratch and image the computer once all the drivers and updates are installed.
After reassembling the system and confirming the new drive is recognized, reinstall your operating system.
