ThinkPad X1 Carbon SSD Replacement

Geschrieben von: Mike
  • Kommentare: 7
ThinkPad X1 Carbon SSD Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

7 Minuten

Einleitung

You will learn how to open the ThinkPad X1 Carbon and replace the solid state drive. This guide only covers replacing the SSD. It does not cover loading the operating system back on the device.

  1. mcEmxGH5wfmXAl3D

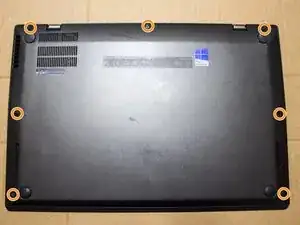

    • Use phillips #2 screwdriver to loosen seven cover screws.

    Don’t forget to backup your data

    Oliver -

  2. JUqnPnWCsGESXnYq

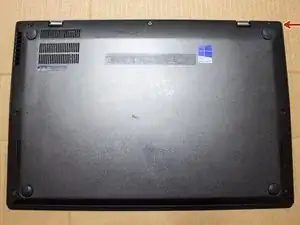

    • Use spudger to pop open bottom cover, remove and set aside.

  3. iNDDLLC1O4baDfWB

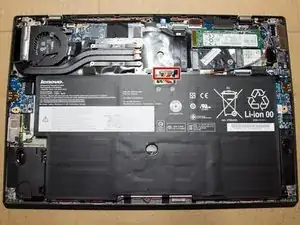

    • Disconnect the battery connector from the main board by pulling the connector towards the battery.

  4. Ocbey4sCqra2acAB

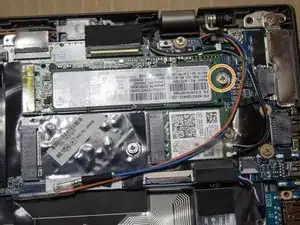

    • Use the # 2 phillips screwdriver and remove the screw holding the SSD in place.

  5. PmNktLxkhBDORhPL

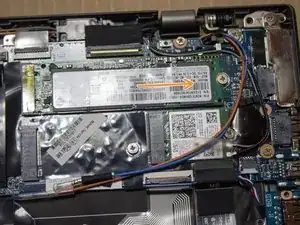

    • Remove the SSD by sliding it out of the connector to the right.

Abschluss

To reassemble your device, follow these instructions in reverse order.
