ThinkPad X1 Carbon Wireless Card Replacement

Geschrieben von: Mike
  • Kommentare: 0
ThinkPad X1 Carbon Wireless Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

In this guide, you will learn how to open the ThinkPad X1 Carbon and replace the wireless card.

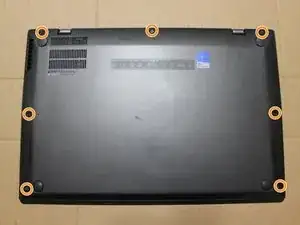

  1. xvYJFRNK15djBJMR

    • Using the #0 Phillips screwdriver, loosen the seven cover screws. they will not come all of the way out.

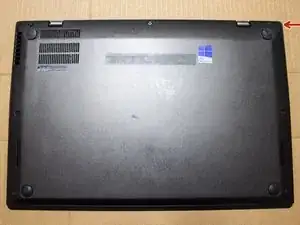

  2. AINJbWHCthohwMkM

    • Using the spudger pop the cover loose and remove.

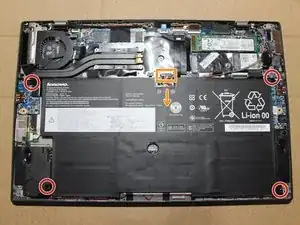

  3. rSTCgkcyiJGjNMmg

    • Use only plastic tools to disconnect battery cable

    • Slide battery connector in the direction if the arrow to disconnect.

    • You can leave the battery or remove it using the red circles for the screw locations.

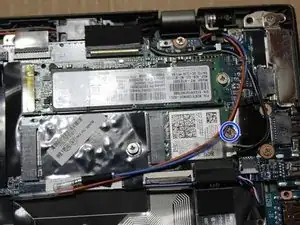

  4. wcuRvgi6cK2WtCC4

    • Remove screw holding the wireless card in place.

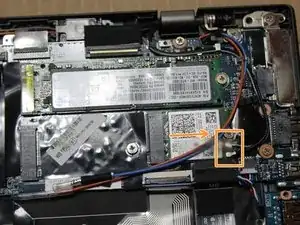

  5. AsHf4113dPkwBpBG

    • Carefully remove the antenna cables and slide out the card in the direction of the arrow.

    • The gray connector is on the top. The black connector is closer to the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
