ThinkPad Yoga 12 Heasink & CPU Fan Replacement

Geschrieben von: David Staeheli
  • Kommentare: 2
ThinkPad Yoga 12 Heasink & CPU Fan Replacement

Schwierigkeitsgrad

Difficult

Schritte

4

Zeitaufwand

1 Stunde

Einleitung

How to replace the CPU fan with its headsink for the Lenovo Yoga 12. Not super easy but can be done by your self.

Fan description for buying:

  • Cooling Fans Heatsink For Lenovo Thinkpad S1 Yoga 04X6440.

  1. dQSkHbWjVHPkvHBC
    dQSkHbWjVHPkvHBC
    XOLtWJvcXhJpslUk
    MmZ2cNlQhJOwLdvP

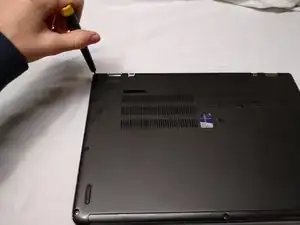

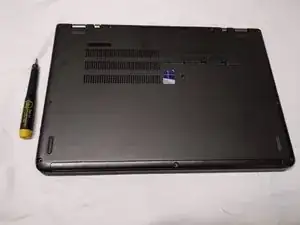

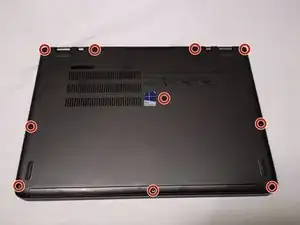

    • Remove the nine Phillips screws using a Philips 00 screwdriver

  2. XRixFSTLRZWQVgis
    XRixFSTLRZWQVgis
    yLTZJeJqceJI2cPf

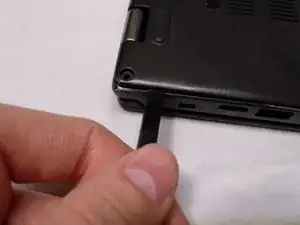

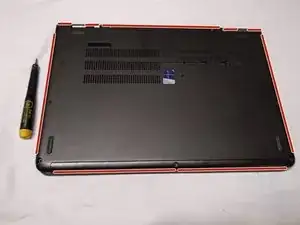

    • Pry up the case carefully using a spudger.

    • Make sure to not push the spudger in too far, as this could result in internal damage

  3. W6gMNxigbpcUERWE
    W6gMNxigbpcUERWE
    lViAdDDWpCOLLv4u
    ZYWOxEGbZT36W1Gm

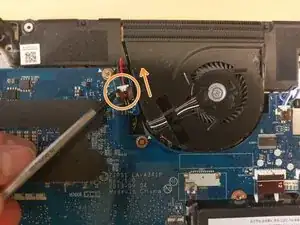

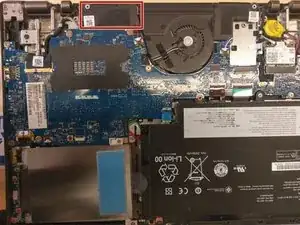

    • Top speaker left which needs to be removed to reveal the cooling system

    • Push out the plug for the speaker in the direction of the arrow.

    • Grab the speaker on the top an bottom and pull it out.

    • Insert wisdom here.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

David Staeheli

Mitglied seit: 03/05/18

157 Reputation

2 Kommentare

Hello, are there some steps missing? The mainboard needs to be removed as well!

Jan Beneš III. -

Yes there are some steps missing, but i can’t add them on this teadown and I don’t know why.

David Staeheli -
