Thomas Ride on Train - System Diagram and Components

Geschrieben von: Andy from Workshopshed
Veröffentlicht: 21/05/13
  • Kommentare: 10

Thomas Ride on Train - System Diagram and Components

Veröffentlicht: 21/05/13

Teardown

Einleitung

  1. u2ZgMHKsTbUObHLL

    • System Components

    • When power is applied to the charging connector it activates a relay which disconnects the power to the main circuits.

    • The main powerswitch is under the large yellow lever and simply applies power from the battery to the control board in the console.

    • A multipole switch is used to reverse the direction of the motor

    • An LED in the console flashes with the sound

    • The sound is provided by a loudspeaker in the base

  2. T4Me1bwnmRtUXyHJ
    T4Me1bwnmRtUXyHJ
    hXdEoFifIrHxoqCa

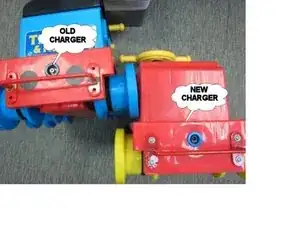

    • Charging Connector

    • The charging connector is on the rear of the train between the buffers

    • My connector is a "old style" connector which is effectively a phono, the new style is a more conventional power connector

  3. h4dlrLhyJ6ijWW2d

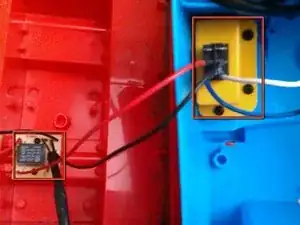

    • Power Switch and Charging Relay Board

  4. alJUwwGV5eDQbDFx

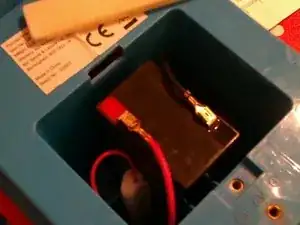

    • This battery has been replaced, the originals attach via a clip

    • Note the fuse on the positive connector

  5. mi1fVdggyiYHKWqm

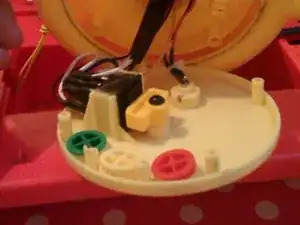

    • This switch is controlled by the level on the console and switches the polarity of the motor connectors.

    • Middle position is off, the other two positions are forward and backwards

    • If you are replacing the LED don't forget that the polarity of the wires is important

  6. y3JvHpsr2pbCj51q

    • Has three switches to activate the music and connectors leading off to the motor, speaker, LED and battery

  7. ldpWr4xPNityYLeG

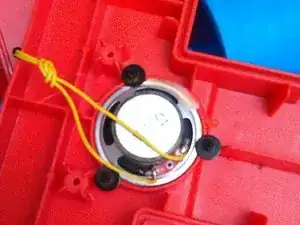

    • This is a 16ohm speaker

  8. auNtQvhn3YEIqooK

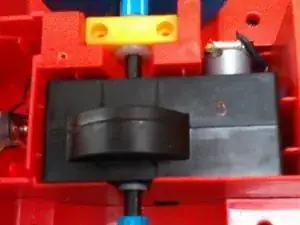

    • 6v electric motor with capacitor for noise and spark suppressor wired across the terminals
