Thrustmaster T Flight Hotas 4 PlayStation Action Buttons Replacement

Geschrieben von: Aaron Banaga
  • Kommentare: 1
Thrustmaster T Flight Hotas 4 PlayStation Action Buttons Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

15 - 20 Minuten

Einleitung

The PlayStation Action Buttons are the x, square, circle, and triangle buttons. They are responsible for camera adjustments and other various actions.

Werkzeuge

  1. bB3dHqa4NPQ2UgYq

    • Be sure to disconnect the controller from the power source before disassembling.

    • Remove the five 15 mm J1 JIS head screws from the front of the throttle.

  2. 6WQxOsrrtPAYM6Sl
    6WQxOsrrtPAYM6Sl
    k5mfXRq3QZTlJGQB

    • Be sure to disconnect the controller from the power source before disassembling.

    • Using your hands, pull away the panel from the throttle.

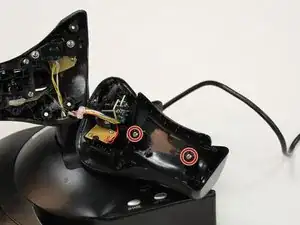

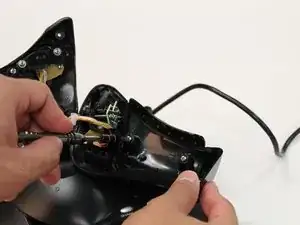

  3. RsuL4VUXSAmBLoRi
    RsuL4VUXSAmBLoRi
    5dda2p1rNhgPBohC

    • Remove the two 8 mm J1 JIS head screws.

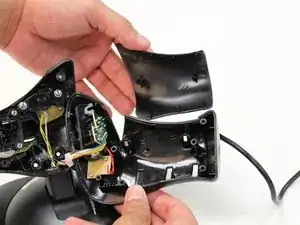

  4. LWVarhtygfAgHh3G
    LWVarhtygfAgHh3G
    TgMHFGktqiTFYSbh

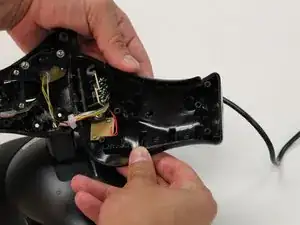

    • Remove exterior panel from the throttle by using your hands to gently pull the panel away.

  5. ThH4VXON62VdsEHG
    ThH4VXON62VdsEHG
    n52lFQnAyNdEMidg

    • Remove the two 6 mm J1 JIS head screws from the circuit board.

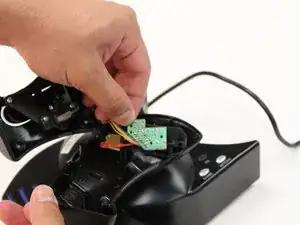

  6. JesexRHS2sMfI5tj

    • Carefully remove the circuit board.

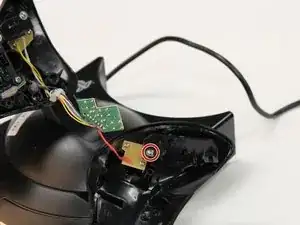

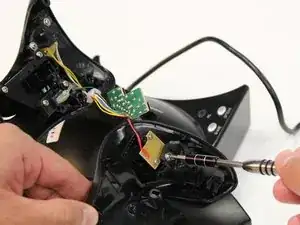

  7. oTecBIBniV21UebG
    oTecBIBniV21UebG
    y2gLEeSLUtPHFNAY

    • Remove the 6 mm J1 JIS head screw that is attached to the black plastic cover.

  8. L1nKgJTRP2JuFsYE
    L1nKgJTRP2JuFsYE
    XBKxCjlxByuCJHMB

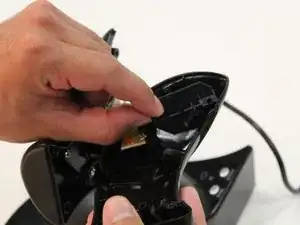

    • Remove black plastic cover.

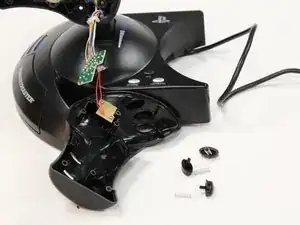

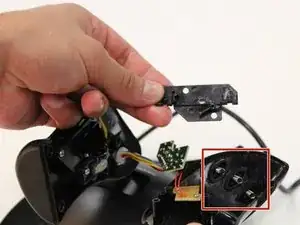

  9. Kklq5pD3v6d1JVAF
    Kklq5pD3v6d1JVAF
    mZr4bpgZMIX1RUKO

    • Once the black plastic cover is removed, push the buttons inward from the outside of the device.

    • Be aware of the springs. They are small and easy to lose.

    • This step only replaces the x, square, and circle buttons.

  10. kbbu2KY2RQoWgfWS
    kbbu2KY2RQoWgfWS
    yPmwuSkMKuAPhQah

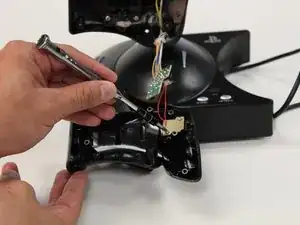

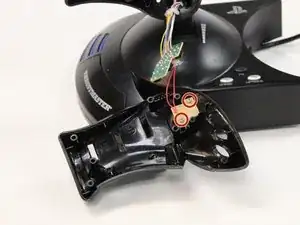

    • Remove the two 6 mm J1 JIS head screws that are attached to the tan plastic cover.

    • Removal of the screws will detach the exterior panel from the device.

  11. WYNAHComyYiaEfux

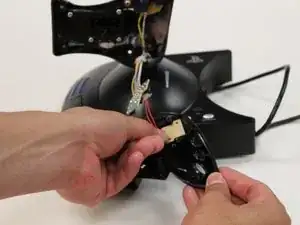

    • Carefully remove tan plastic cover.

  12. 1nyhEwJXNGTTEMwY

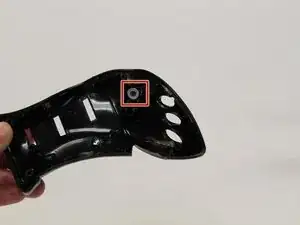

    • Once the black panel is disconnected, push the triangle button inward from the outside of the exterior panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
