Thrustmaster T Flight Hotas 4 R2 & L2 Buttons Replacement

Geschrieben von: Crystal Nguyen
  • Kommentare: 1
Thrustmaster T Flight Hotas 4 R2 & L2 Buttons Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

Replacing unresponsive R2 & L2 buttons on the throttle will help with game play.

Werkzeuge

  1. bB3dHqa4NPQ2UgYq

    • Be sure to disconnect the controller from the power source before disassembling.

    • Remove the five 15 mm J1 JIS head screws from the front of the throttle.

  2. 6WQxOsrrtPAYM6Sl
    6WQxOsrrtPAYM6Sl
    k5mfXRq3QZTlJGQB

    • Be sure to disconnect the controller from the power source before disassembling.

    • Using your hands, pull away the panel from the throttle.

  3. GqjZZjiUGRRiUktT
    GqjZZjiUGRRiUktT
    EyoEBKc6Z1lm2eNg

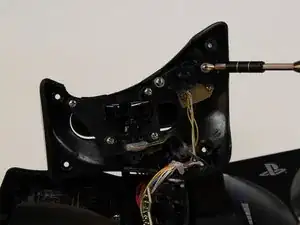

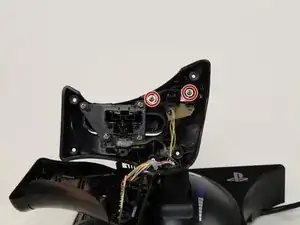

    • Remove the two 7 mm J1 JIS head screws from the panel covering the buttons.

  4. ZOxLcuphmOHicNnL
    ZOxLcuphmOHicNnL
    yEGvUstXIaxOIQ1U

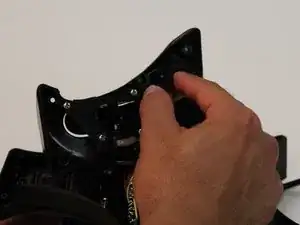

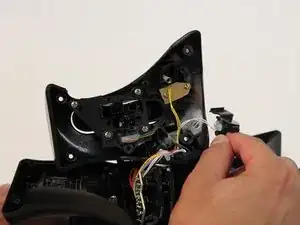

    • Pull the panel that is covering the R2 button away from the throttle.

  5. iYNNvBXJUOmHaUbd
    iYNNvBXJUOmHaUbd
    r6gPHuFsMt6HcOO6

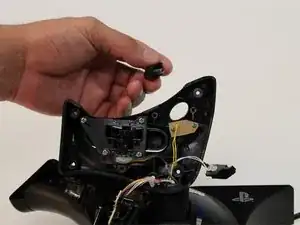

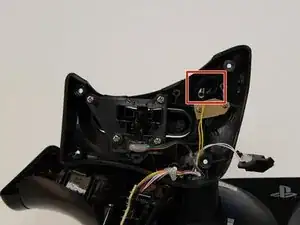

    • Carefully push the R2 button from the outside of the panel.

    • Be cautious of the spring attached to the button as it can be easily lost.

  6. HtLxKG1aWEKULnI2
    HtLxKG1aWEKULnI2
    w6XBhgLFT4lAsLYp

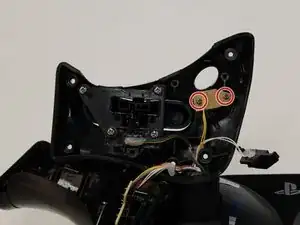

    • Remove the two 4 mm J1 JIS head screws from the panel covering the L2 button.

  7. y5QYhpoQYAKkKakD
    y5QYhpoQYAKkKakD
    heDCdwm1WOUDtUNJ

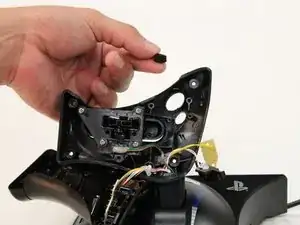

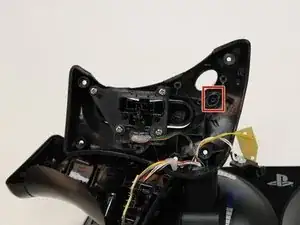

    • Carefully push the L2 button from the outside of the panel.

    • Be cautious of the spring attached to the button as it can be easily lost.

Abschluss

To reassemble your device, follow these instructions in reverse order.
