TiVo Premiere XL4 Hard Drive Replacement

Geschrieben von: Frances Prewitt
  • Kommentare: 0
TiVo Premiere XL4 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

The hard drive is the component capable of storing recordings. This information is vital in case the TiVo does not record the desired shows.

  1. quYMjrMTceAXEDQB

    • Power down the TiVo Premiere XL4 by detaching the power cable from the unit and power source.

    • Allow the box to cool for at least 5 minutes before proceeding to the next step.

  2. pOSY461K2BKSbUMY
    pOSY461K2BKSbUMY
    APR2YMiRjeWJeOeU

    • Remove the four 80 mm T10 screws from the back of the TiVo box using theTorx screwdriver.

  3. 6RBHQM2L3OGcXOsL

    • Take the outer casing by sliding the top of the box off of the component carefully, making sure not to damage the surrounding components inside.

  4. Q6gXgXQ4TYIk1wjI
    Q6gXgXQ4TYIk1wjI
    pIUPYmEbTn4pa6Ea
    o6sPEWedtURvh3HY

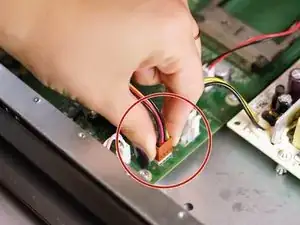

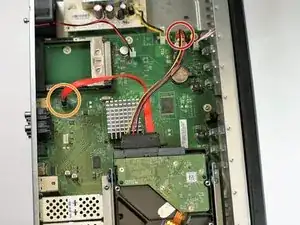

    • Pinch the connector of the bundle of wires (the bundle having black, red, black and yellow wires) and gently remove from the motherboard.

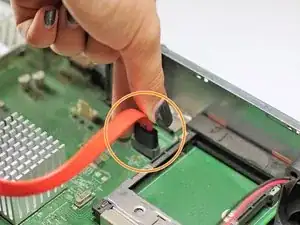

    • Pinch the connector of the single flat wire and gently remove from motherboard.

  5. Qea4jVeWRtWBrIKv
    Qea4jVeWRtWBrIKv
    lTj3XDDMAHBOSRBI

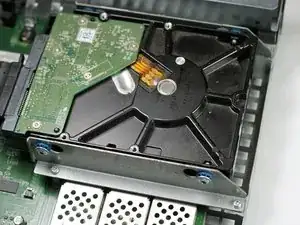

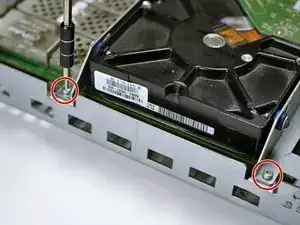

    • Unscrew the following two 80 mm T10 screws connecting the hard drive to the bottom of the box using the Torx screwdriver.

    • Repeat on the other side of the hard drive.

    • There will be a total of four 80 mm T10 screws removed.

  6. TySCoBQlWr4XmMkj

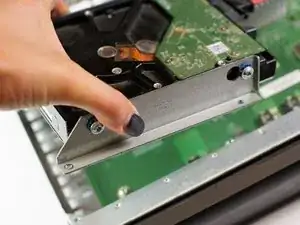

    • Remove hard drive from box.

  7. v4UXthnWDbGCfkJD

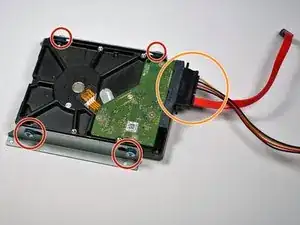

    • Remove the marked (2) T10 screws and washers using a Torx Screwdriver.

    • Repeat on the opposite side for (2) T10 screws.

    • Remove the connecting cable.

    • Keep the fasteners if the hard drive needs to be replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
