TiVo Series 2 TCD24008A Battery Replacement

Geschrieben von: Cody Hunter
  • Kommentare: 0
TiVo Series 2 TCD24008A Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

The battery acts as an internal power source for the device. In case this battery needs to be replaced, this simple guide will walk you through the steps of removing the current battery to replace it.

  1. dfWbkgx2iLNZARcG

    • Unscrew the five 0.31 inch T-9 screws on the back cover.

  2. PUt6QkkBQL5SabyI

    • Slide the cover towards the back until it is no longer under the front cover.

  3. 3i4x5QvxKbIpACZY

    • Lift the cover up and off the device.

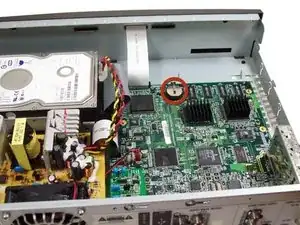

  4. fwKIDWgHZOiK6DJ3

    • Locate the battery on the motherboard.

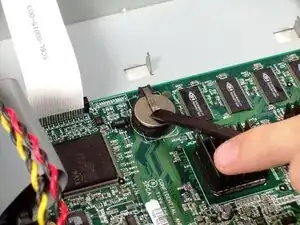

  5. fF2taaRfkFAHNbNY

    • Using the spudger, wedge the metal clip off of the top surface of the battery.

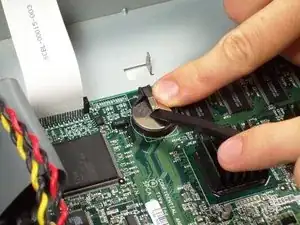

  6. SMJklOCLUY5DSiBh

    • Use your finger to push the battery sideways out of its holder.

Abschluss

To reassemble your device, follow these instructions in reverse order.
