TiVo Series 2 TCD24008A Power Supply Replacement

Geschrieben von: Phil Jones
  • Kommentare: 0
TiVo Series 2 TCD24008A Power Supply Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 30 Minuten

Einleitung

The power supply allows for the TiVo components to work. In the situation that it needs to be replaced, this guide will walk you through the installation of the power supply

  1. dfWbkgx2iLNZARcG

    • Unscrew the five 0.31 inch T-9 screws on the back cover.

  2. PUt6QkkBQL5SabyI

    • Slide the cover towards the back until it is no longer under the front cover.

  3. 3i4x5QvxKbIpACZY

    • Lift the cover up and off the device.

  4. HbtHXGI25KpNh6jj

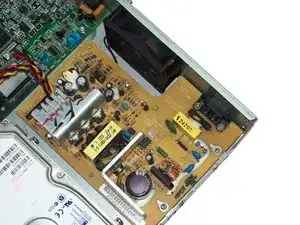

    • Locate the power supply.

  5. Glu5JHfxraW3ngG6

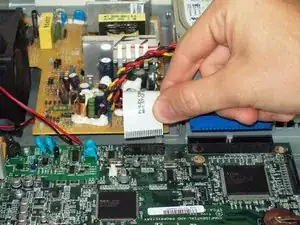

    • Remove the belt connecting the power supply to the motherboard by pulling it out.

  6. OZbwXPsBEc1KmZFy

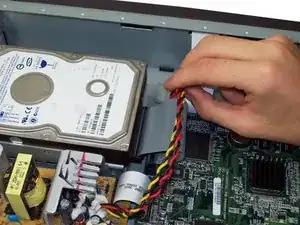

    • Remove the red, yellow, and black cable connecting the power supply to the hard drive.

  7. l3tuAZ6SrV2vShiG

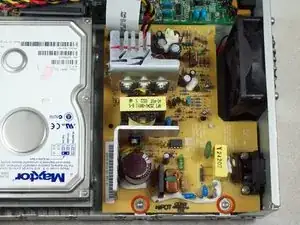

    • Remove the two 0.31 inch T-9 screws from the power supply.

  8. rd14OVrLTyMJyNdO
    rd14OVrLTyMJyNdO
    auT6WflTNYHqWLIq

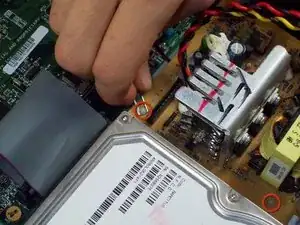

    • Pinch the plastic plugs and lift the power supply up to detach from plugs.

    • All 4 plugs must be detached to remove power supply.

Abschluss

To reassemble your device, follow these instructions in reverse order.
