TiVo Series 2 TCD540080 Cooling Fan Replacement

Geschrieben von: Svyatoslav Markeyev
  • Kommentare: 1
TiVo Series 2 TCD540080 Cooling Fan Replacement

Schwierigkeitsgrad

Very easy

Schritte

6

Zeitaufwand

2 Minuten

Einleitung

  1. UERHctUAKiA2RrEl

    • Power down the TiVo and detach the power cable from the rear of the unit.

    • Wait 5 minutes for the unit to fully discharge before proceeding to the next step.

  2. 4JVVqHe6G4IwHAbQ

    • Remove the five T10 screws from the rear of the case using the Torx screwdriver.

  3. wVgTJsNaZyPafi5K
    wVgTJsNaZyPafi5K
    Z1Ga14Hkbj1YKYKb

    • Lift up and pull back the outer casing towards the rear of the unit.

    I have the TiVo Series 2 model TCD746500 and the procedure for replacing a fan on my model is almost identical to the procedure described here, with one significant difference at this step: first pull/slide the outer casing back towards yourself and only thereafter pull it up.

    Oscar Abraham Jaeger -

  4. rKZKxWtatFvuAasf

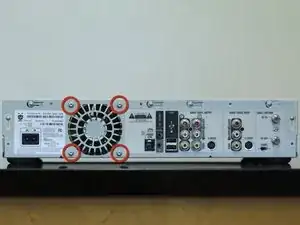

    • The fan is held in by four T15 screws on the rear of the device.

  5. pqOi1NxQY5iwv3wN
    pqOi1NxQY5iwv3wN
    YYHuZhpfgXgDn5Yb

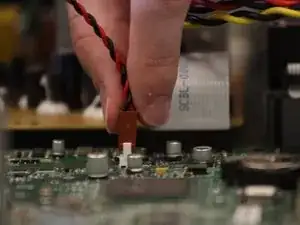

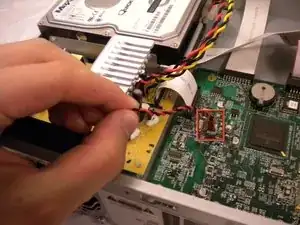

    • Take the wound red and black wires coming from the fan and follow them back to the logic board.

    • Unplug the connector from the motherboard.

  6. Fm6KGOpkFcHdwUDc
    Fm6KGOpkFcHdwUDc
    rijgQVZqH6AI6Wuo

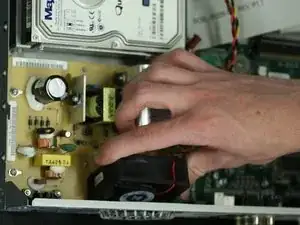

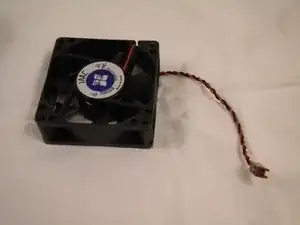

    • Pull the fan towards the front and out of the TiVo unit.

Abschluss

To reassemble your device, follow these instructions in reverse order.
