TiVo Series 2 TCD540080 Hard Drive Replacement

Geschrieben von: Svyatoslav Markeyev
  • Kommentare: 1
TiVo Series 2 TCD540080 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

  1. UERHctUAKiA2RrEl

    • Power down the TiVo and detach the power cable from the rear of the unit.

    • Wait 5 minutes for the unit to fully discharge before proceeding to the next step.

  2. 4JVVqHe6G4IwHAbQ

    • Remove the five T10 screws from the rear of the case using the Torx screwdriver.

  3. wVgTJsNaZyPafi5K
    wVgTJsNaZyPafi5K
    Z1Ga14Hkbj1YKYKb

    • Lift up and pull back the outer casing towards the rear of the unit.

    I have the TiVo Series 2 model TCD746500 and the procedure for replacing a fan on my model is almost identical to the procedure described here, with one significant difference at this step: first pull/slide the outer casing back towards yourself and only thereafter pull it up.

    Oscar Abraham Jaeger -

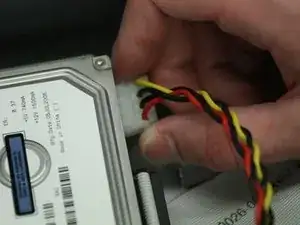

  4. 4ppcryYdItW4YJbC

    • Disconnect the power to the hard drive.

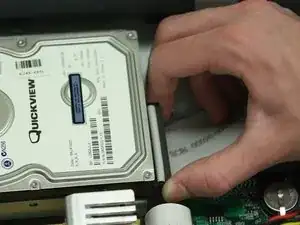

  5. nXDQJUgZycnJPLXh

    • Grab the hard drive data cable from both sides of the connector and unplug it from the hard drive.

    • Use extreme caution when unplugging connector and do not disconnect the data cable by pulling on the cable itself.

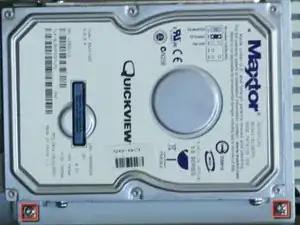

  6. CWsMiivlpT3KNyrO

    • Unscrew the two screws on the case of the hard drive with a T10 screwdriver.

    • Pull the hard drive up and out of the TiVo unit.

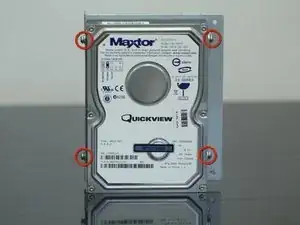

  7. 5vYeCCXLaTyHxkpU

    • Unscrew the four screws, shown in the picture, with a T-10 screwdriver.

    • Remove the hard drive from the case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
