Toaster Oven Toasting Knob Replacement

Geschrieben von: Alissa Mell
  • Kommentare: 0
Toaster Oven Toasting Knob Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

This guide will teach you how to properly disassemble a Toastmaster toaster over and replace the toasting knob. Before you begin, clean out your toaster oven and make sure it is off and unplugged.

  1. G1tkHur2intjORiY
    G1tkHur2intjORiY
    y1S5GRfLONQKctAc
    2ngI4KXtxqsSqpFX

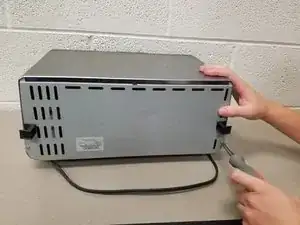

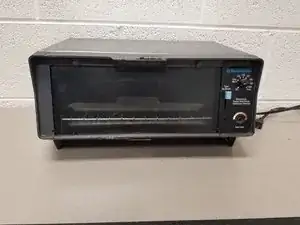

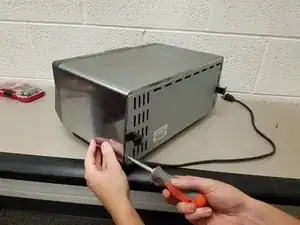

    • Remove the two 4mm by 8mm screws from the back of the toaster oven.

  2. If1iEEotPl3KlmFF
    If1iEEotPl3KlmFF
    pxwQn5EqoNuMUZAS
    c5PNJj6qQmOiMbXd

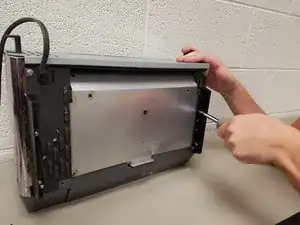

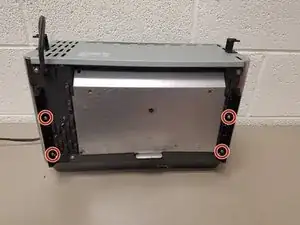

    • Remove the four 4mm by 8mm screws from the black supports from the base of the toaster oven.

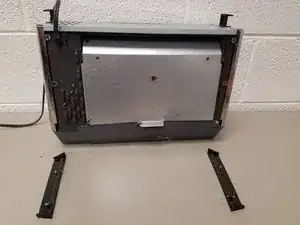

    • Take the two supports off of the bottom.

  3. GQqvreRUVltXAubD
    GQqvreRUVltXAubD
    mCBP43nuwVODq43d

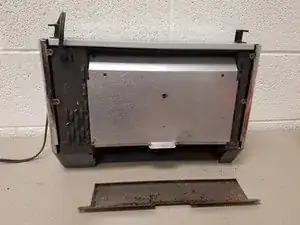

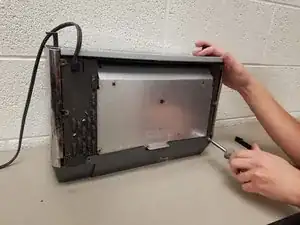

    • Remove the two 4mm by 4mm screws from the base in order to remove the tray.

  4. YLQlCZPLAJShuHgk

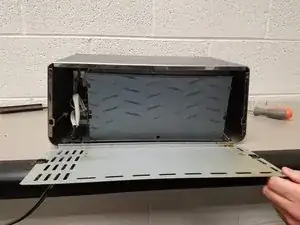

    • Slide the back panel off of the oven.

  5. eR6lPYWWD5QO246I

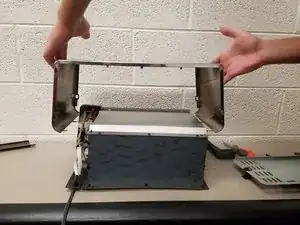

    • Grip the sides of the metal cover and lift the cover up off the toaster oven top.

  6. By6supr3SBFciL1p
    By6supr3SBFciL1p
    BN4VGVrAWXW5ZdBP
    YDL5hSNNDdUgq11e

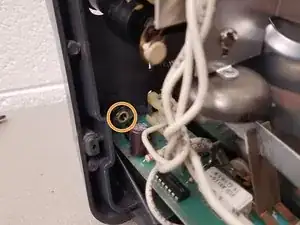

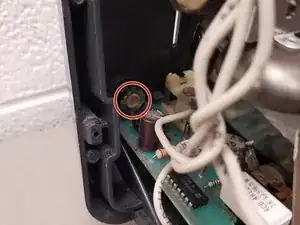

    • The knob is missing in the first picture.

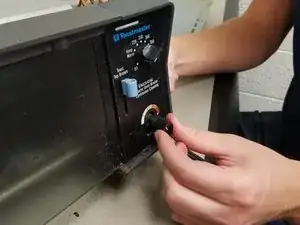

    • Push the knob into the hole.

    • The knob is now back in place in the last picture.

Abschluss

To reassemble your device, follow these instructions in reverse order.
