Einleitung

The following guide steps through the process of removing the power button and its components for replacement.

  1. HqHyEJkaxPwQAOHn
    HqHyEJkaxPwQAOHn
    riAgEZRRe1JoX1sp

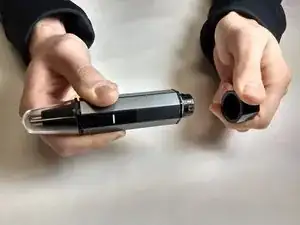

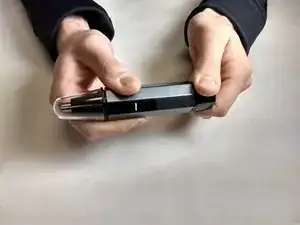

    • Twist the battery cap found on the bottom of the device counterclockwise.

  2. MPGxoHuUnXJGj4dF

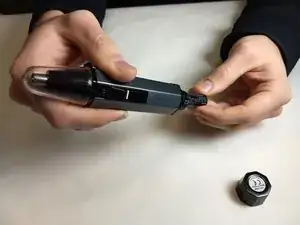

    • Remove the battery

  3. bckebBajTHHJMUvN
    bckebBajTHHJMUvN
    VPBlk3mFIWNl3LbC

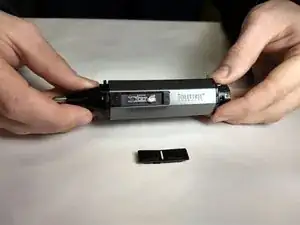

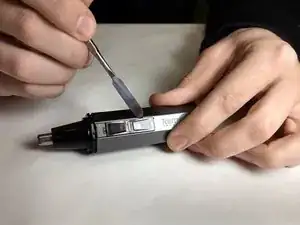

    • Using the metal spudger, wedge underneath the button and gently pry it out.

    • Note orientation of the switch, so that it can be replaced properly.

  4. kJ2Zr5GBgxRrwaXj
    kJ2Zr5GBgxRrwaXj
    1gpS3kdYWPy6BT4l
    MZwZNRZ2ku14s1UC

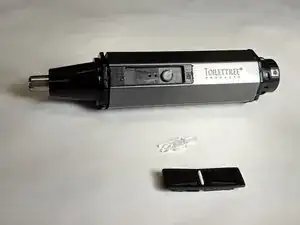

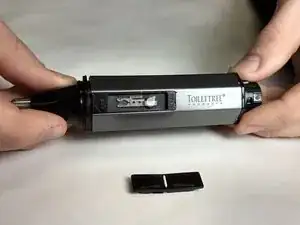

    • Underneath the button lies two small components. We will reference them as the o-ring assembly and clear tab. Take note of their orientation.

    • Continue disassembly by prying the clear tab upwards.

  5. oVqjXu1VGcUXaUt5
    oVqjXu1VGcUXaUt5
    DRPtPFDnIKmpNISq
    SRSDmihPJM2ARUQq

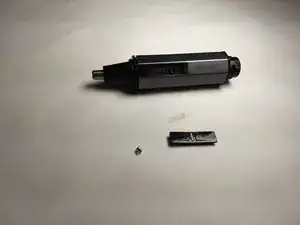

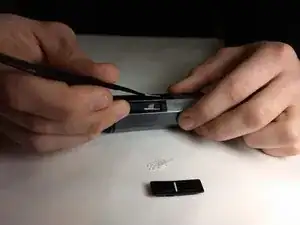

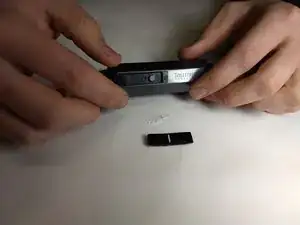

    • Using the tweezers, take the o-ring switch assembly out of the trimmer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
