TomTom GO Live 1535M Battery Replacement

Geschrieben von: Mathias Sagide
  • Kommentare: 0
TomTom GO Live 1535M Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

  1. IDXAgiqdps2pKwPO

    • Slip a small opening tool underneath the screen, gently sliding it around the outside edge.

    • It may be easier to start at the corners.

  2. qhntACvNupVoJuK1
    qhntACvNupVoJuK1
    OWNfhTKfGcDbPiQM

    • Carefully remove the reset button cable (located on the left) and the ribbon cable.

    • Remove the screen and set it aside.

  3. x5t4mCl4Q6WX1Jn3

    • Remove the logic board cables.

    • We highly advice that a pair of tweezers are used for this step to ensure no part is damaged.

  4. d3wDpWbittQNWKuU

    • Remove the 3.6mm screws with a Phillips Screwdriver.

    • After removing the screws simply lift the logic board from the base.

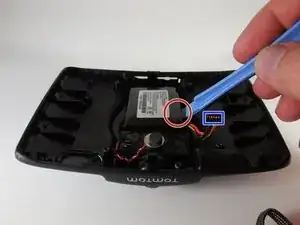

  5. xHwOMI2Mjiq5CAaQ

    • Simply lift the battery up and out of the base.

    • Remove the cable.

    • Replace the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
