TomTom GO Live 1535M Screen Replacement

Geschrieben von: Mathias Sagide
  • Kommentare: 1
TomTom GO Live 1535M Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

Please check out the TomTom GO Live 1535M Troubleshooting Guide before taking the device apart to ensure you are following the correct repair procedure.

  1. FLq5Ixu52glj22Ea

    • Slip a small opening tool underneath the screen, gently sliding it around the outside edge.

    • To do this, it may be easier to start at the corners.

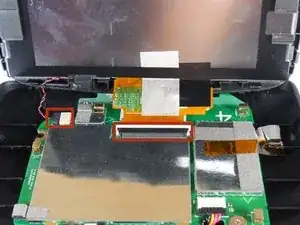

  2. CuobBEGlGoVQfde4
    CuobBEGlGoVQfde4

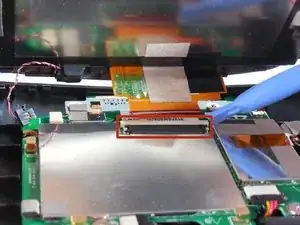

    aMOakJjiSlQBsVFi

    • Carefully remove the reset button cable (located on the left) and the ribbon cable.

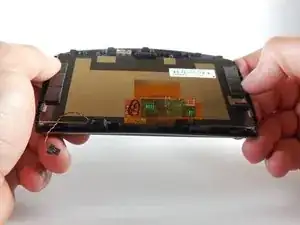

  3. MYPUnWAal1nrlSuN
    MYPUnWAal1nrlSuN

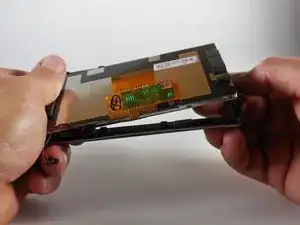

    qhIALiGmDBeHcjoe

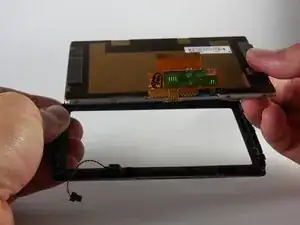

    QpJEiKAVM26pL1V4

    • The screen is simply removed by pushing it up-and-out of the outside rim (denoted by the box).

    • As you remove the screen, you may hear a 'tearing' sound. Do not panic, as this is just the leftover substance that holds the screen in place. It will re-stick when the screen in placed back.

    • If you need to find a replacement screen, please click the link here. Link text

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Mathias Sagide

Mitglied seit: 20/01/15

618 Reputation

Ein Kommentar

I just replaced the screen. But with the cable ribbon installed the screen does not activate. The startup tom-tom sound does play. The screen is blank. But the old screen does not work as well. Prior to this the screen did work but was un responsive. Any thoughts?

Steven Kawchak -
