TomTom Go 60 S Button Cell Battery Replacement

Geschrieben von: Tomy Peralta
  • Kommentare: 0
TomTom Go 60 S Button Cell Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

6 Minuten

Einleitung

If you need to replace the button cell battery of your TomTom Go 60 S, use this guide. After removing the covering for the device, the button cell battery will be located underneath the motherboard. It is important for retaining the information system vital to operation of the device.

  1. NTGTKL2eI1mNK3UI

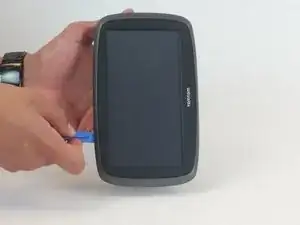

    • Use the iFixit opening tool to pry open the TomTom Go 60 S. Start from a corner and drag the tool around the device.

  2. IkxbWf2IsQhNflD4

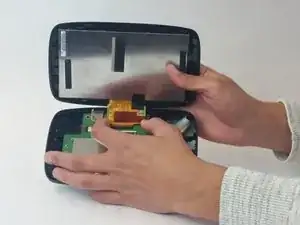

    • Disconnect the screen from the motherboard by removing the yellow ribbon connector from the socket.

  3. kvYYoojcVBGFABDJ

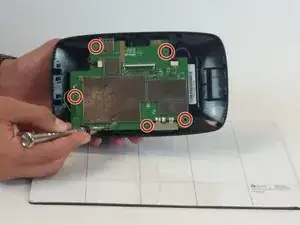

    • Remove all six screws from the motherboard with a Philips #000 screwdriver.

  4. cpLJedHmDIDtPGoK
    cpLJedHmDIDtPGoK
    PI5yI3qEUxpeFGfv

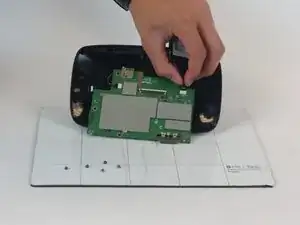

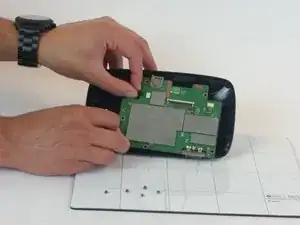

    • Disconnect the two battery ribbon cables from the motherboard.

  5. IP6rVimSdLZm1JGh
    IP6rVimSdLZm1JGh
    i2InXaslEAoIvpKa

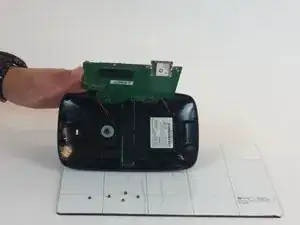

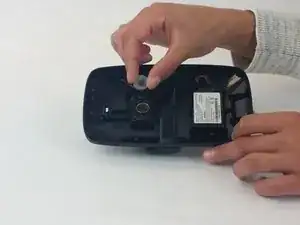

    • Remove the button cell battery from outer casing to remove battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
