TomTom Go 60 S Motherboard Replacement

Geschrieben von: Ambermarie Dawdy
  • Kommentare: 1
TomTom Go 60 S Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

9 Minuten

Einleitung

This guide is to help instruct how to replace the motherboard of the TomTom Go 60 S. The motherboard in the main circuit for the device.

  1. GeUYHSQloXsLiN32

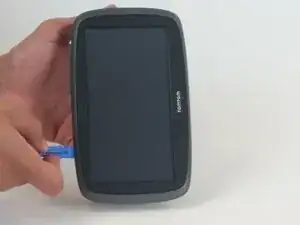

    • Use the iFixit opening tool to pry open the TomTom Go 60 S. Start from a corner and drag the tool around the device.

  2. gH2sH6OZDPhSAeSY

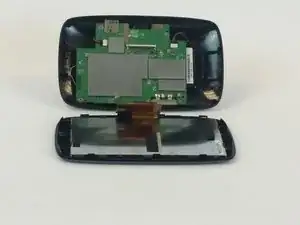

    • Carefully pull the back cover apart from the front cover. Be careful not to pull too hard because there are two sets of wires connecting the device

  3. sZXfunmuMEgV4bmB

    • Once the two covers are separated, use your fingers, to gently disconnect the wires that are connected to the motherboard from the back cover.

  4. VcAwkBYhnspU6Qjk

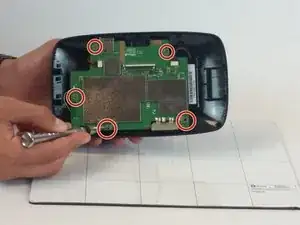

    • Next, you must remove the motherboard from the front screen.

    • Use a Phillips #000 screwdriver to unscrew the screws.

  5. PCY4gvXWWPlymGmd
    PCY4gvXWWPlymGmd
    PrMp1IkCNbNsb1Yd

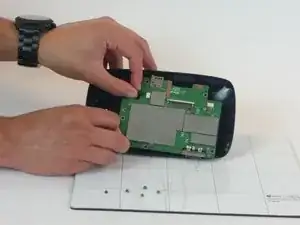

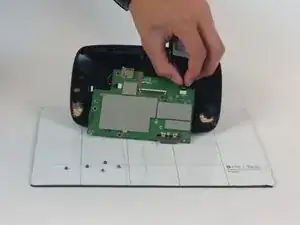

    • Separate the motherboard from the front cover, you must disconnect the wires connecting the two.

  6. 6aEAgxRVREIcGAF5

    • The motherboard is now disconnected from the front assembly

Abschluss

To reassemble your device, follow these instructions in reverse order.
