This guide will teach you how to replace the battery of the TOMTOM XL if the battery is dead or malfunctioning.
Werkzeuge
-
-
Using the palate knife tool, pry the back from the LCD screen. Apply a moderate pressure to separate them.
-
-
-

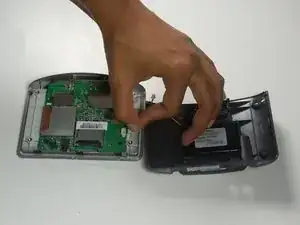

After prying both halves apart, they will be connected by two wires.
-

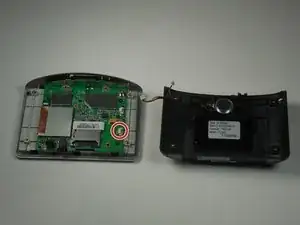

Carefully set the two halves next to each other making sure not to stress or damage the wires.
-
-
-

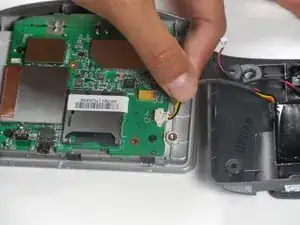

Using the tweezers separate the wires connecting the battery and speaker to the mother board.
-
-
-

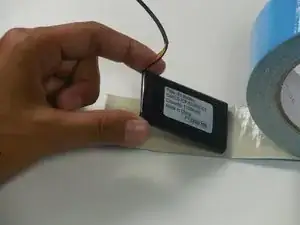

Place the backside of the battery on the sticky side of the double sided tape.
-

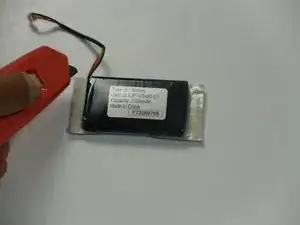

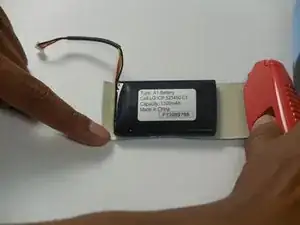

Using the tech knife, trim the extra tape to the size of the battery.
-
-
-

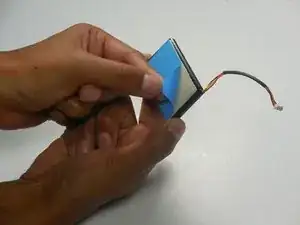

Remove the back of the double sided tap.
-

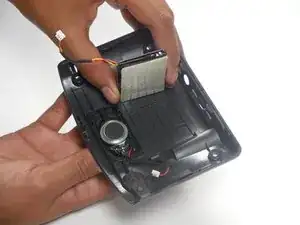

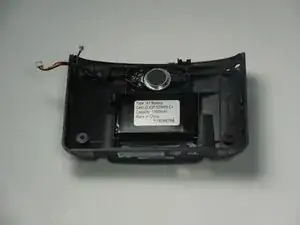

Place the new battery back inside the back panel of TOMTOM XL.
-
To reassemble your device, follow these instructions in reverse order.
