TomTom One XL Power Button Replacement

Geschrieben von: Jesse
  • Kommentare: 0
TomTom One XL Power Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will teach you how to disassemble your TomTom One XL and expose the power button for cleaning or repair.

  1. NEk4WXjiVWgniga5
    NEk4WXjiVWgniga5
    XRiuEh5tXKIYsX6N

    • Remove the 4 .4mm screws on the back of the device.

  2. IdTRAa5JU4TvwTXZ

    • Using the palate knife tool, pry the back from the LCD screen. Apply a moderate pressure to separate them.

    • You can rotate TOMTOM XL to make prying back off easier.

    • Be careful not to injure the two wires connecting the pieces.

  3. 3CD3W2bXOYfIUHXC

    • After prying both halves apart, they will be connected by two wires.

    • Carefully set the two halves next to each other making sure not to stress or damage the wires.

  4. oiBcqZe1cmDpOybD
    oiBcqZe1cmDpOybD
    NowlBUBVGSSWED2d

    • Using the tweezers separate the wires connecting the battery and speaker to the mother board.

    • Be gentle while pulling the wires out, the plugs are easily injured.

  5. gHNsJRmsrS66uCU1

    • Using a Torx 6 screwdriver, remove the 4 .5mm screws connecting the motherboard to the screen assembly.

    • The motherboard is connected to the screen assembly via a ribbon wire. After removing the screws, be careful not to damage the wire or the port.

  6. dPSLvdnScof55TA2
    dPSLvdnScof55TA2
    jwMWySFGhiWUsmJV

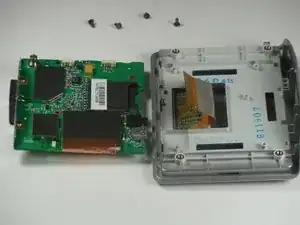

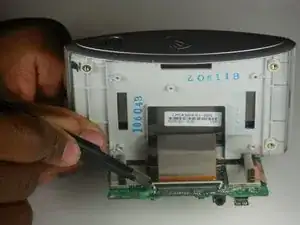

    • Detach the ribbon wire from it's port on the back of the motherboard.

  7. du2VOA2RKMSvAkKA
    du2VOA2RKMSvAkKA
    THUbLHtjanWaUZrE
    csWnY2PhAqFOMivj

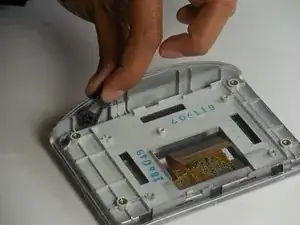

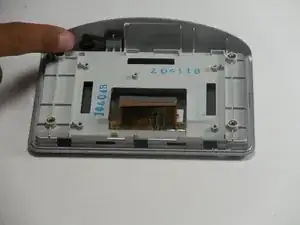

    • Now the power button is exposed and any obstructions can be easily removed.

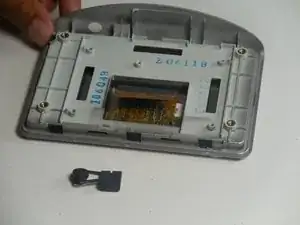

    • If you want to replace the button it can easily be popped out using your hands.

Abschluss

To reassemble your device, follow these instructions in reverse order.
